Myway: High-Performance Bushings for Construction, Agricultural, and Automotive Machinery

If you are engaged in the construction machinery manufacturing industry, such as excavator, bulldozer, tractor, car, etc., then bushings must be one of your indispensable helpers.

Having passed ISO9001 certification
Various Types, Wide Applications
Replacement for Famous Brands
High-quality Materials ensure Performance
The Friction Coefficient Range is 0.06-0.12μ.

Introduction of Myway Bushings

As a single component, the bushing is installed at the connection of two parts to reduce the friction between the two sliding surfaces, absorb impact and support the parts, effectively extending the service life of the equipment.

The bushing is a kind of bearing, mainly including self lubricating bushing, boundary lubrication bushing, bimetal bushing, sliding bushing, cast bronze bushing, steel bushing, thrust washer, plastic bushing and so on.

Due to the wide range of applications, there are numerous types of bushings. This article introduces how to choose the most suitable bushings from 3 aspects: construction machinery, agricultural machinery and auto parts.

Bushings for Construction Machinery

Excavator Bushings

Application Site: upper arm, lower arm, pit connection.
Features: resistant to mud and sand wear, high load bearing, easy to replace.
Bushing Types: bronze bushing, self-lubricating bushing (SF-1, JF).

Loader Bushings

Application Site: bucket hinge, lift arm.
Features: withstanding frequent lifts and shocks.
Bushing Types: FB090 bronze bushing, self lubricating bushing.

Bulldozer Bushings

Application Site: track wheels and steering joints.
Features: Long service life, capable of high loads.
Bushing Types: JDB Solid lubricated bushings, bimetallic bushings.

Crusher Wear Parts

Application Site: Eccentric shafts, spindle assemblies.
Features: Suitable for high temperature and high pressure, high speed friction conditions.
Bushing Types: Bronze bushings, graphite embedded bushings.

Wear Bushing Drilling Rig

Application Site: Eccentric shafts, spindle assemblies.
Features: Suitable for high temperature and high pressure, high speed friction conditions.
Bushing Types: Bronze bushings, graphite embedded bushings.

Bushings for Agricultural Machinery

Tractor Bushings

Application Site: Steering shaft, connecting rod, bracket
Features: Maintenance-free, suitable for dusty environments in the field.
Bushing Types: Self lubricating bushings (DX, SF-1)

Combine Harvester Bushings

Application Site: Rocker arms, cutting systems.
Features: Suitable for medium loads, dust and sludge coexistence environment.
Bushing Types: JF bimetallic bushings, powder metallurgy bushings

Seeder Bushings

Application Site: Slewing joints, connecting shafts, swivel interfaces.
Features: Fertilizer and pesticide solution resistant, 30% longer service life.
Bushing Types: PTFE composite bushing, modified POM bushing.

Agricultural Sprayer Bushings

Application Site: Rotating pivot point, connecting parts.
Features: Acid and alkali resistant.
Bushing Types: ETFE perfluoro bushing, PPS filled bushing.

Baler Bushings

Application Site: Support shafts, transmission parts.
Features: Resistance to instantaneous peak loads up to 120MPa.
Bushing Types: Thermoplastic polymer bushings (plastic/PTFE).

Automobile Bushings

Transmission Bushings

Application Site: Clutch bearing housing, transmission joints.
Features: High temperature resistant, lubricant resistant.
Bushing Types: Copper-based bushings, graphite embedded bushings.

Engine Bushings

Application Site: Piston pins, small end/connecting rod bushings, crankshafts.
Features: Withstand high temperature and pressure, low friction.
Bushing Types: Bimetallic bushings (steel + lead/copper), powder metallurgical bushings.

Steering Bushings

Application Site: Steering column, steering housing.
Features: Low friction, high wear resistance, precise handling.
Bushing Types: Copper-based bushings, graphite embedded bushings.

Suspension Bushings

Application Site: Spring mounts, upper and lower swing arms, shock absorber joints.
Features: Shock absorbing and noise reducing, anti-wrinkle and anti-deformation.
Bushing Types: FB090 Bronze, Plastic/PTFE.

Chassis Bushings

Application Site: Control arm, sway bar, rods, ball joints.
Features: Vibration damping, eliminates wobble, fatigue resistant.
Bushing Types: Rubberized Metal Bushing, Bimetal Bushing (JF), Polyurethane Bushing.

Features of Myway Bushings

Wide Applications

Bushings are needed to provide protection whenever there is a scenario where two parts rub against each other, especially in construction, agriculture and automotive.

Comprehensive Variety

As a mature bushing production factory, Myway can provide you with various types of bushings, perfectly suitable for Caterpillar, Komatsu, Volvo CE, Sandvik, Metso and other brands.

Favorable Price

With mature supply chain management and large-scale production, Myway achieves highly competitive price positioning, while ensuring product performance and quality.

Reliable Quality

Having obtained ISO, CE, IATF, UL and other authoritative certification, Myway designs and manufactures bushings to exacting standards, making them quality assured.

Accurate Parameters

Myway utilizes fully automated equipment to fabricate bushings, ensuring consistency from batch to batch. The size tolerance of our bushings is no more than 0.2 mm.

High Performance

Based on high quality raw materials, standardized production and quality control, Myway bearings are wear-resistant, quiet and have a long service life.

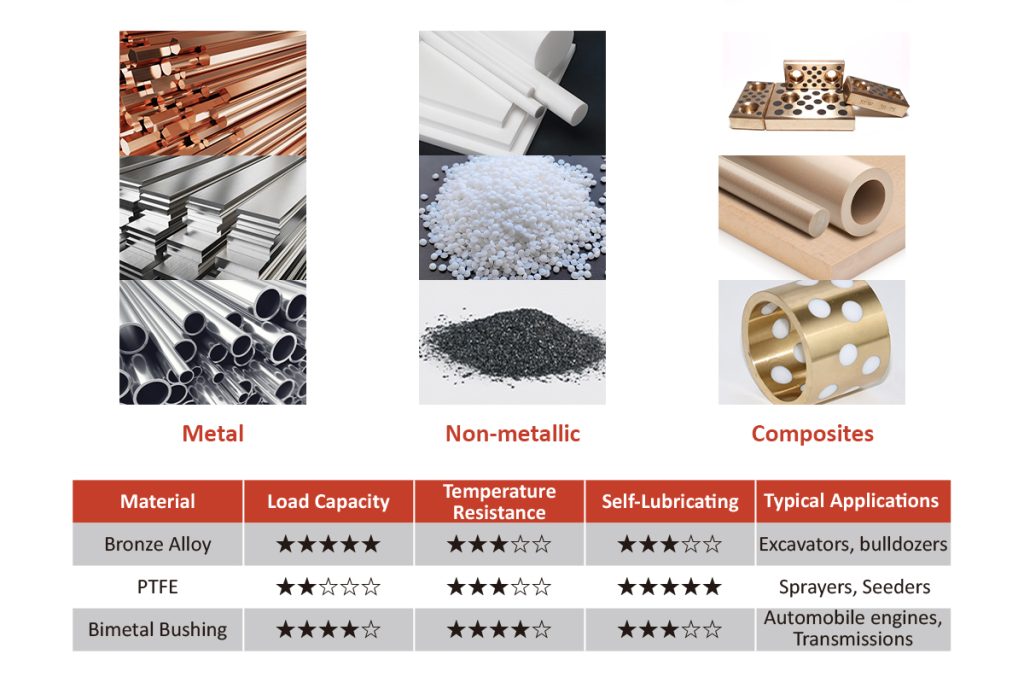

Main Materials of Bushings

You can rest assured that the raw materials used by Myway are sourced from reliable suppliers to ensure the quality and performance of bushings.

Metals: Carbon steel; brass; high-lead brass; copper alloys such as tin bronze and aluminum bronze; stainless steel 304/316; cast iron; aluminum alloys such as duralumin and wrought aluminum.

Non-metallic: Plastics including PTFE and POM, of which PTFE has a very low coefficient of friction and is resistant to wear and corrosion; POM is self-lubricating and rigid. In addition, graphite is often embedded as a lubricant in the metal or plastic matrix.

Composites: Metal matrix composites, such as copper alloys inlaid with graphite / PTFE; fiber reinforced composites, such as glass fiber / carbon fiber reinforced plastics (FRP / CFRP).

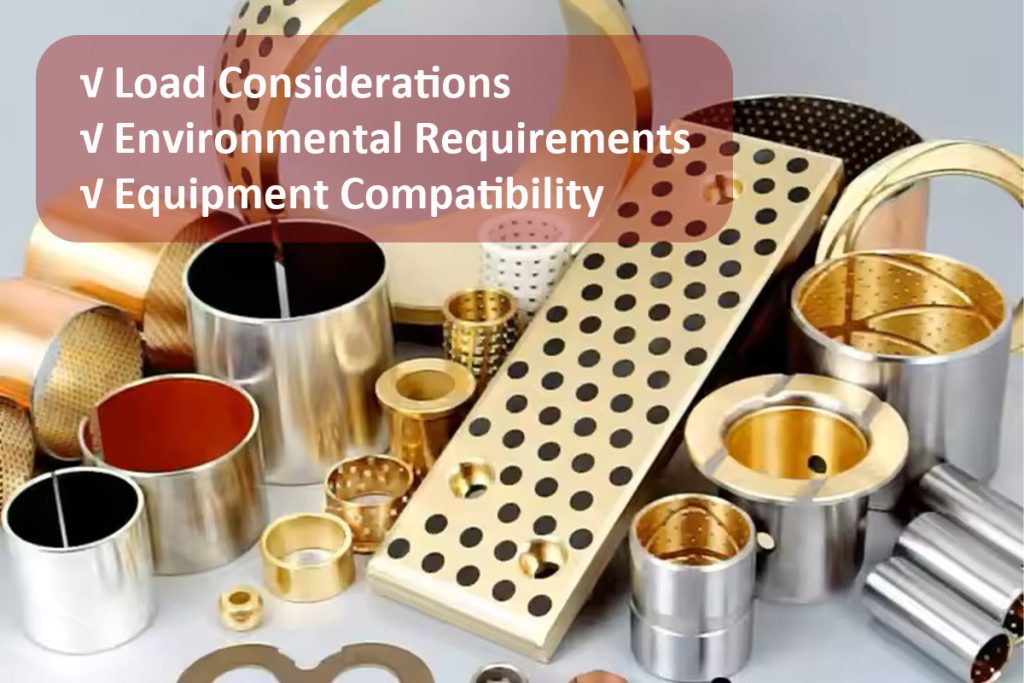

How to Choose the Suitable Bushings

Load Considerations: For light-duty applications (agricultural seeders), you can choose economical self-lubricating plastic (PTFE/POM) or powder metallurgy bushings. For heavy-duty machines like excavators or bulldozers, we recommend that you use copper alloy or bimetallic bushings for higher load carrying capacity.

Environmental Requirements: In dusty/muddy environments (construction machinery), self-lubricating bushings (SF-1/JF) should be selected to minimize maintenance. In high temperature/corrosive environments (automobile engines), stainless steel or graphite-coated copper alloy bushings is a brilliant choice..

Equipment Compatibility: Myway bushings are an exact match to OEM specifications (e.g., Caterpillar Cat. No. XYZ, Komatsu Part No. ABC) and are a drop-in replacement. If standard sizes don’t fit, we can provide a customized solution to meet your requirements.
