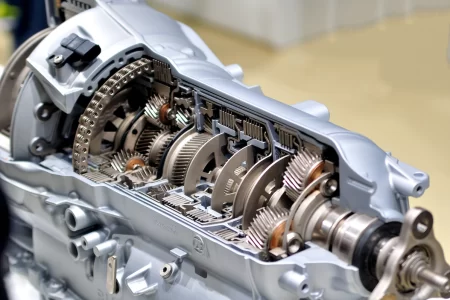

Overview of Passenger Car Transmission Bushings
Passenger car transmission bushings are crucial components specifically designed for vehicles such as sedans, SUVs, and MPVs. They reduce friction between parts within the transmission, ensuring smooth and efficient power transfer. Our passenger car transmission bushings use high-wear-resistant, self-lubricating materials, making them ideal for use in manual, automatic, continuously variable (CVT), and dual-clutch (DCT) transmissions.
Application Scenarios for Passenger Car Transmission Bushings
Highlight specific applications within different types of passenger car transmission systems:

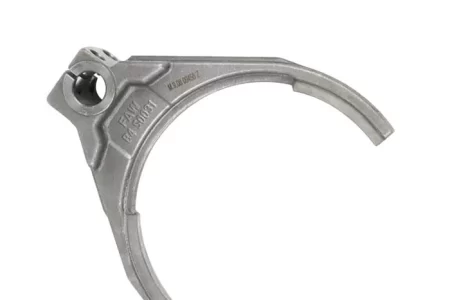

- Manual Transmissions (MT): Bushings are used to support the shifting mechanism and synchronizer hubs, ensuring smooth and reliable shifting, suitable for small cars and sports sedans.
- Automatic Transmissions (AT): Bushings provide critical support and lubrication within the torque converter and planetary gear assemblies, suited for family cars and luxury vehicles in high-temperature environments.
- Continuously Variable Transmissions (CVT): Bushings reduce friction and noise in the pulley shaft and transmission mechanism, improving fuel efficiency, suitable for hybrid vehicles and compact SUVs.
- Dual-Clutch Transmissions (DCT): Bushings minimize friction in the dual-clutch system, enhancing shifting speed and smoothness, commonly used in high-performance cars and sports vehicles.
Applicable Vehicle Models
Our transmission bushings are suitable for various types of passenger cars, including but not limited to:
City Sedans: Focused on comfort and fuel efficiency, these models benefit from SF-1 or SF-2 light self-lubricating bushings, ensuring smooth shifting and quiet operation.
SUVs and Off-Road Vehicles: Designed to handle higher loads and complex road conditions, we recommend bimetallic or embedded graphite bushings for exceptional durability and reliability.
High-Performance Sports Cars: With a focus on speed and handling, these vehicles require greater stability and wear resistance, making embedded graphite bushings the optimal choice.
Materials & Technology of Gearbox Bushings
Our transmission bushings are made from various high-performance materials to meet the demands of different car models and challenging driving environments:
SF-1/DU Self-Lubricating Bushings: Made from a multi-layer composite material that includes a steel backing, a bronze powder layer, and a PTFE (Polytetrafluoroethylene) surface coating. These bushings perform exceptionally well in high-temperature and heavy-load conditions, reducing wear and noise while extending the transmission’s service life.
SF-2/DX Bushings: Also featuring self-lubricating properties, these bushings are designed to work well with external lubricants, making them ideal for semi-dry operation environments and higher load scenarios.
Bimetallic Bushings: Composed of a steel base combined with a copper alloy, these bushings offer excellent load capacity and outstanding wear resistance, making them well-suited for transmission systems that need to withstand higher loads, especially common in SUVs and off-road vehicles.
Embedded Graphite Bushings: These bushings have solid lubricants like graphite or MoS2 embedded in the copper alloy surface. They maintain low friction and self-lubricating characteristics under extreme conditions, making them ideal for sports car transmissions that require high stability at heavy loads or high speeds.
Product Range and Detailed Specifications
Offer detailed models, materials, and performance parameters for passenger car transmission bushings, enabling B2B buyers to make precise choices. For example:
Partial gearbox bushings
| Product Model | Inner Diameter Range | Outer Diameter Range | Length Range | Material Type | Applicable Transmission Type | Max Load (MPa) | Temperature Range (°C) |
| CVT-BS01 | 10-50 mm | 12-60 mm | 15-80 mm | PTFE Composite | CVT | 100 | -40~200 |
| AT-BS02 | 12-60 mm | 15-70 mm | 20-90 mm | High-Strength Brass | Automatic | 120 | -40~250 |
| DCT-BS03 | 15-70 mm | 18-80 mm | 20-100 mm | Bronze Composite | DCT | 140 | -30~280 |
| Application/Description | Years | Material | OEM # | Industry | MW # |
| Chrysler | |||||
| A404, A413, A470, A670 | |||||
| A413, A470, A670 Center Support, Front | 85-on | Babbitt | MD731163A | 42005 | 28334 |
| A413, A470, A670, A604, 40TE, 41TE, 41AE, A904,TF6, A500, 44RE, 40RH, 42RH, 44RH, A500, 42RE Pump Body | 68-on | Bronze | 2466796 | 12502A | 33382 |
| A404, A413, A470, A670 Extension Housing | 78-on | Bronze | 4269961 | 32060 | 33390 |
| A404, A413, A470, A670 Low, Reverse Drum | 78-on | Bronze | 5222137 | 32040 | 33391 |
| Ford | |||||
| 6R140, 6R60E, 6R75, 6R80 | |||||
| 6R140 Pump Stator | 10-on | Babbitt | TBA | TBA | 316311 |
| 6R80 Pump | 06-on | PTFE | E8SP-7A132AA | 96005 | 31831X |
| 6R60E, 6R75, 6R80 Stator Tube, Rear (1.180”ID) | 05-on | Babbitt | 1006-614 | N/A | 31833B |
| General Motors | |||||
| ALLISON 1000, 2000 | |||||
| ALLISON 1000, 2000, 2400 PUMP | 411311 | ||||
| 3T40, TH125 Stator Support, Front | 80-on | Babbitt | 8628915 | 65002 | 33317 |
| 3T40, TH125 Case To Final Drive Gear | 80-on | Bronze | 8631119 | 75019 | 33322 |
Learn more about gearbox bushings
If you want to find more information about the size, material or OEM number of transmission bushings, you can contact us. We have a lot of cooperation with transmission merchants in the Middle East

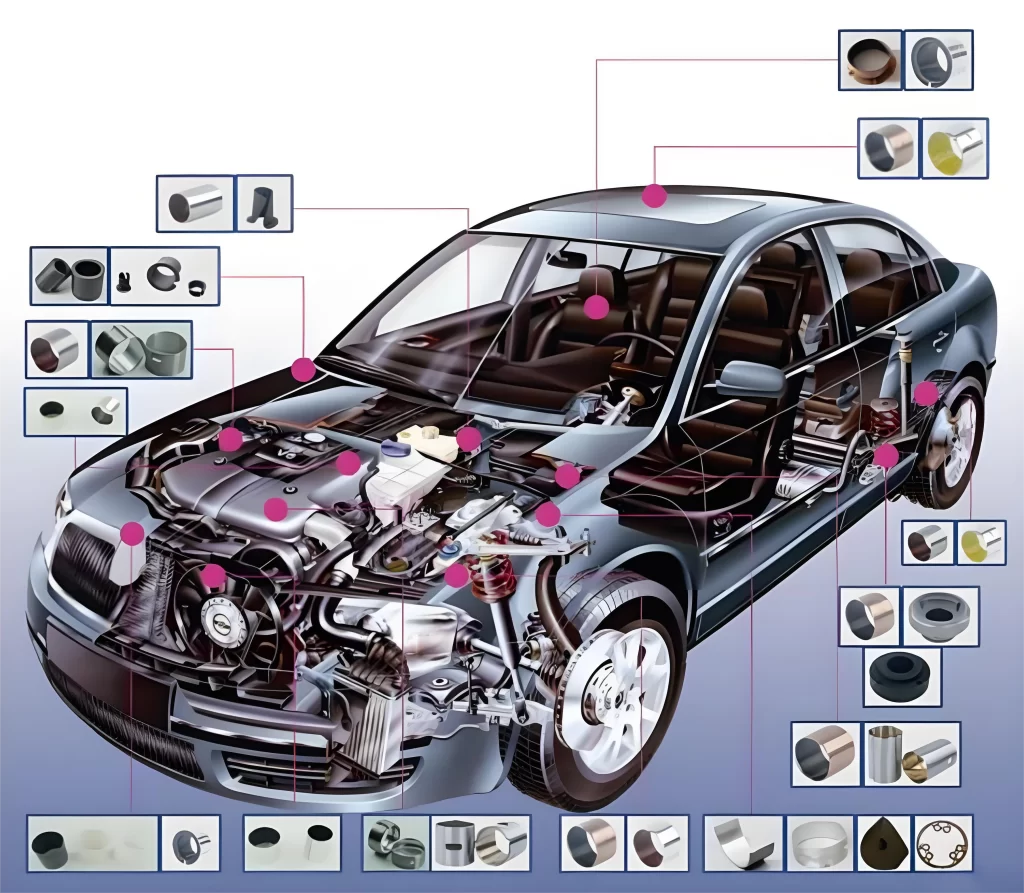

- Suspension System:
- Control arm bushings, stabilizer bar bushings: Typically made from polyurethane or polyoxymethylene (POM) due to their wear resistance and good frictional properties, suitable for enduring repetitive friction and load.

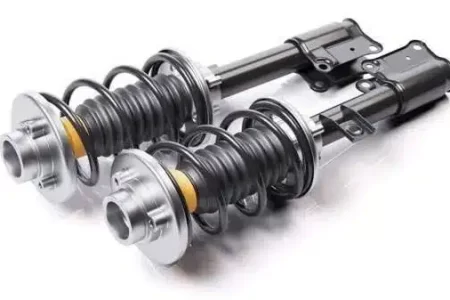

- Shock absorber top mount bushings: Likely made from polyurethane or silicone rubber, to absorb vibrations and reduce noise.
- Steering System:
- Steering knuckle ball joint bushings, tie rod end bushings: Polyterafluoroethylene (PTFE) or polyoxymethylene (POM) are common in these locations for their very low friction coefficient and high wear resistance.
- Steering column bushings: Polyterafluoroethylene (PTFE) or polyimide (PI), providing smooth steering operations and high-temperature resistance.
- Transmission:
- Transmission bearing bushings, selector rod bushings, output shaft bushings: Often use bronze-filled PTFE or polyimide (PI) due to their ability to withstand high temperatures and complex mechanical stresses.

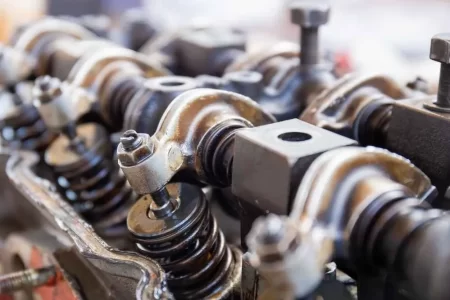

- Engine Components:

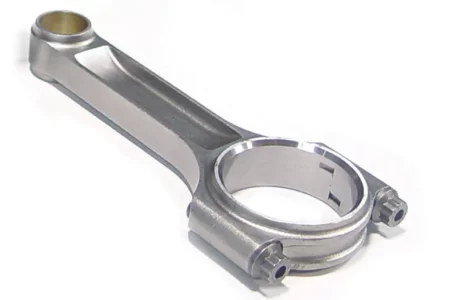

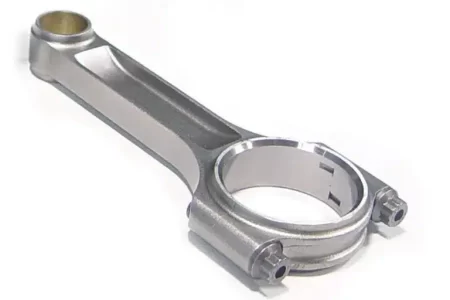

- Piston pin bushings, connecting rod bushings, crankshaft main bearing bushings: Commonly use bronze or fiber-reinforced PTFE to endure extreme thermal loads and friction.
- Drivetrain:

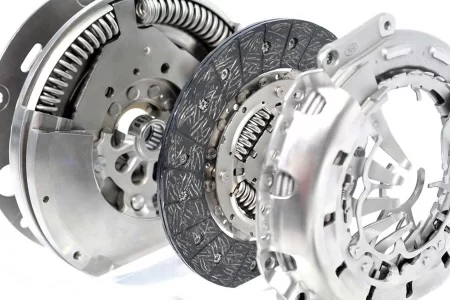

- Clutch actuator arm bushings, driveshaft center support bushings: Made from polyurethane or polyoxymethylene (POM), providing durability and vibration reduction.

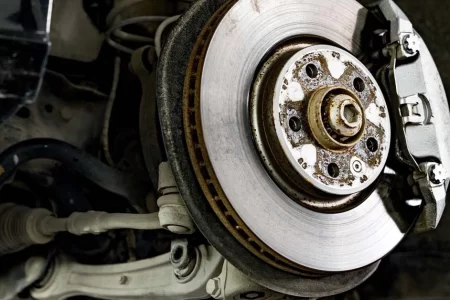

- Brake System:
- Brake pedal pivot bushings, handbrake linkage bushings: Polyurethane or polyterafluoroethylene (PTFE) to optimize smooth operation and durability.
- Body Components:
- Door hinge bushings, trunk hinge bushings: Typically made from polyurethane or silicone rubber, for their wear resistance and damping properties.
- Interior Functional Components:
- Seat rail bushings, steering wheel adjustment mechanism bushings: Polyterafluoroethylene (PTFE) or polyurethane, offering smooth adjustment functions and wear resistance.
- Air Conditioning and Cooling Systems:
- Fan bracket bushings, adjustment valve bushings: Polyimide (PI) or polyterafluoroethylene (PTFE), chosen for their high temperature resistance and chemical stability.
