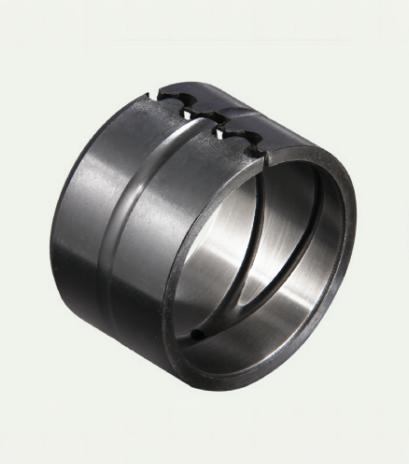

Spring Steel Wrapped Bushing
Garter Spring End

Garter Spring End---Wrapped Steel Bushing

  • Adaptive to housing bore: Spring-end design tolerates larger bore size deviations, reducing machining costs.

  • Elastic installation: Self-elasticity simplifies assembly and compensates for minor misalignments.

  • High wear resistance and long service life: Made of high-strength spring steel with excellent hardness and durability.

  • Heavy-duty adaptability: Capable of withstanding high loads, suitable for low-speed, high-load, and high-vibration conditions.

  • Self-adjusting and anti-galling: Automatically adjusts position under high friction to reduce wear and protect equipment.

Technical Parameters

PropertyValue
Tensile Strength>230 N/mm²
Yield Strength>130 N/mm²
Elongation>9%
MaterialSAE660 (65Mn)
Surface Hardness700 HV
Coefficient of Elasticity93 kN/mm
