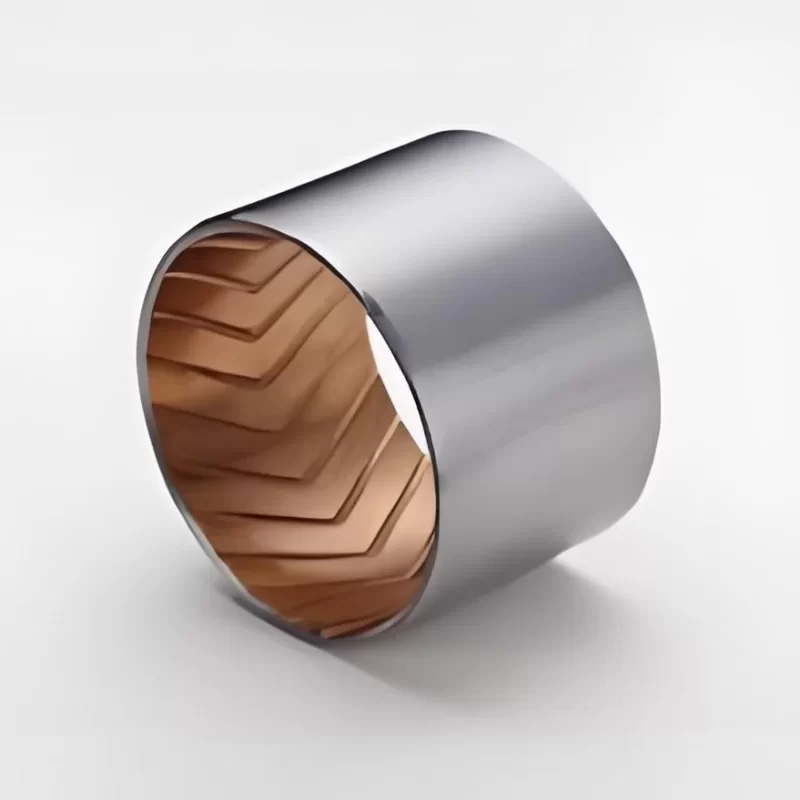

Steel+CuSn6.5P0.1 ---Bimetal Bushing
The bearing is a lead-free product with relatively high fatigue strength, excellent load capacity, and good sliding performance. Its application fields are gradually expanding.
Technical Parameters
| Property | Value | Unit |
|---|---|---|
| Max Load Capacity | 65 | MPa |
| 33,350 | psi | |
| Operating Temperature | -40 to 200 | °C |
| -40 to 392 | °F | |
| Max Linear Speed (Oil) | 5.0 | m/s |
| 1,000 | fpm | |
| Max PV Value | 10.0 | MPa·m/s |
| 286,000 | psi·fpm | |
| Min Hardness (Sliding Layer) | 60 | HB |
| 60 | HRC | |
| Min Hardness (Counterpart) | 45 | HB |
| 45 | HRC |
Metallographic Analysis
Steel+CuSn6.5P0.1
