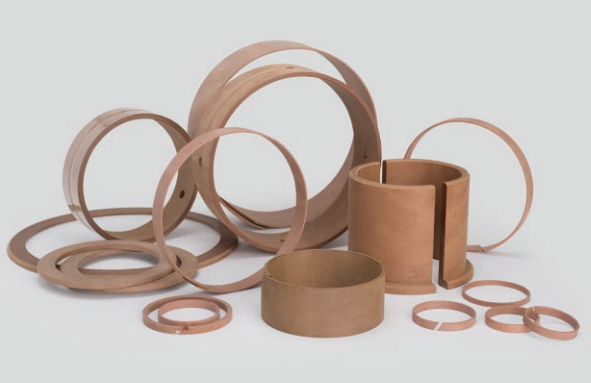

PFC-1 Fabric-Reinforced Phenolic Resin Guide & Support Rings
PFC-1 is a high-strength composite material. It is based on a thermosetting phenolic resin and reinforced with high-quality cotton fabric. It is hot-formed under specific temperature and pressure. This material offers high load-bearing capacity, good temperature resistance, excellent wear resistance, and stable dimensional stability.
It is suitable for:
Guide rings and support rings in hydraulic cylinders
Bushings for the pivot axles of engineering machinery and vehicles
Thrust washers
Guide sleeves for columns of hydraulic machinery and forging presses
Typical Applications of PFC-1 Fabric-Reinforced Phenolic Resin Guide & Support Rings
Guide rings & support rings for hydraulic cylinders
Guide sleeves for columns of hydraulic machinery & forging presses
Bushings for pivot axles of engineering machinery & vehicles
Performance Specifications: PFC-1 High-Strength Phenolic Guide & Support Rings
| Parameter | Value | Unit |
|---|---|---|
| Part Number | PFC-1 | – |
| Color | Light Yellow to Brown | – |
| Density | 1.2 – 1.4 | g/cm³ |
| Ultimate Compressive Strength | 256 | MPa |
| Tensile Strength | 45 | MPa |
| Impact Strength | 26 | J/m |
| Hardness (Rockwell) | 95 | HRM |
| Coefficient of Friction (Dry) | 0.23 – 0.46 | – |
| Coefficient of Friction (Lubricated) | 0.12 – 0.14 | – |
| Operating Temperature | -40 ~ +130 | °C |
Note: The data provided is for general reference only and may vary depending on the specific application, environment, and media.
