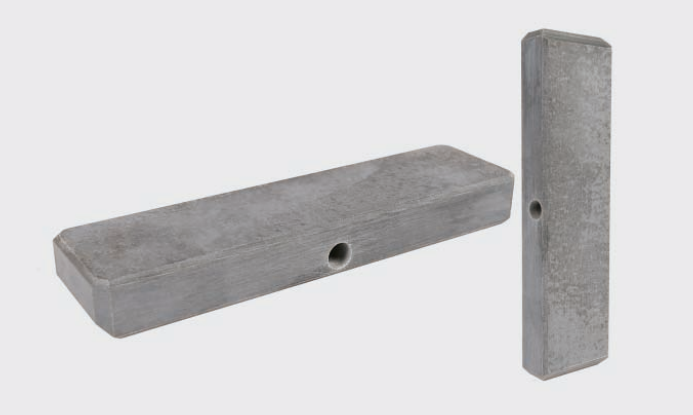

PFC-30 Self-Lubricating Composite Material Hatch Cover Pads
PFC-30 is composed of synthetic fiber, reinforced epoxy resin, and added wear-resistant materials. This material features a low coefficient of friction, high mechanical properties, excellent dimensional stability, good chemical and corrosive resistance, and electrical insulation properties.
Typical Applications of PFC-30 Self-Lubricating Composite Material Hatch Cover Pads
Specialized ship bearings
Support pads for ship hatch covers
Shipbuilding and marine components
Pump components
Hydroelectric power components
Performance Specifications: PFC-30 Self-Lubricating Composite Material Hatch Cover Pads
| Parameter | Value | Unit |
|---|---|---|
| Part Number | PFC-30 | – |
| Color | Green or Grey | – |
| Density | 1.3 – 1.5 | g/cm³ |
| Ultimate Compressive Strength | 350 | MPa |
| Hardness (Rockwell) | 94 | HRM |
| Coefficient of Friction (Dry) | 0.14 – 0.20 | – |
| Coefficient of Friction (Lubricated) | 0.08 – 0.12 | – |
| Operating Temperature | -40 ~ +120 | °C |
Note: The data provided is for general reference only and may vary depending on the specific application, environment, and media.
