BINQ Square Shaft Linear Guide System
What is BINQ Square Shaft Linear Guide System?

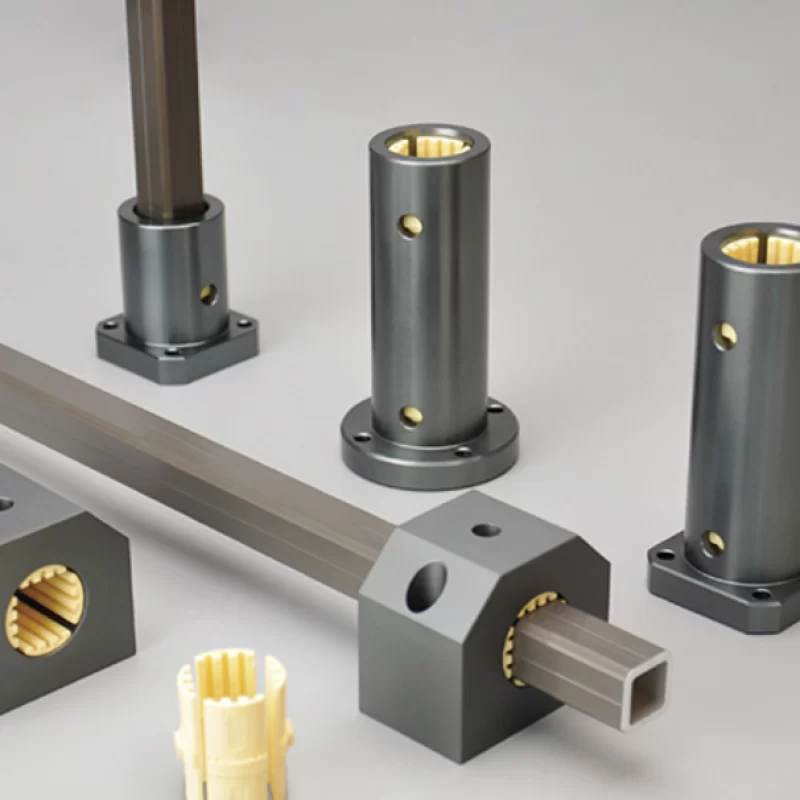

The MYWAY-BINQ square shaft linear guide system ensures linear, torsion-resistant movement, making it highly suitable for overhead applications.
The hard-anodized aluminum alloy square rail features a hollow design that allows for routing and protecting cables internally.
When paired with the BIN-12Q plastic linear bearing, it achieves maintenance-free operation and flexible installation.
Self-lubricating with high wear resistance.
Low noise and easy installation.
Designed for torsion-resistant linear motion.
Suitable for dirty or dusty environments.
Technical Parameters of BINQ Square Shaft Linear Guide System
Material properties | Standard | Unit | CSB-EPB13 |
General properties | |||
Color | – | – | Yellow |
Density | ISO1183 | g/cm3 | 1.48 |
Max. moisture absorption, 50%RH | ISO62 | % | 0.3 |
Max. water absorption | ISO62 | % | 1.3 |
Coefficient of sliding friction(steel) | ITS025 | µ | 0.05-0.15 |
Max. PV value | ITS026 | N/mm2×m/s | 0.40 |
Mechanical properties | |||
Flexural modulus | ISO178 | MPa | 2800 |
Flexural strength | ISO178 | MPa | 60 |
Max. static load | ITS027 | MPa | 35 |
Max. dynamic load | ITS028 | MPa | 14 |
Shore hardness | ISO868 | D | 74 |
Physical and thermal properties | |||
Long-term application temperature | ITS029 | ℃ | +90 |
Short-term application temperature | ITS029 | ℃ | +120 |
Lowest application temperature | ITS029 | ℃ | -50 |
Thermal conductivity | ISO22007 | W/m/K | 0.25 |
Coefficient of thermal expansion | ISO11359 | K-1×10-5 | 10 |
Flammability | UL94 | Class | HB |
Electrical properties | |||
Volume resistance | IEC60093 | Ω·cm | >1013 |
Surface resistance | IEC60093 | Ω | >1012 |
*Test temperatures are 23℃ unless otherwise stated.
