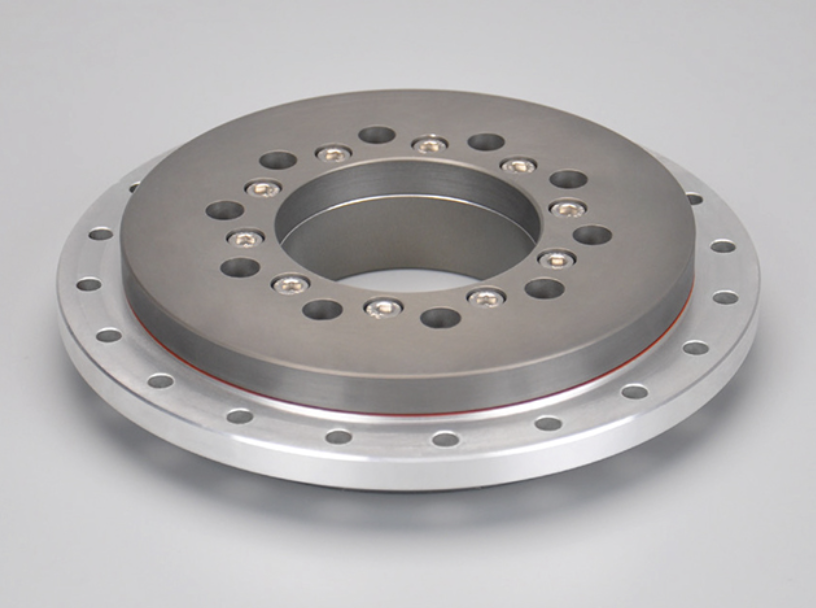

SRR Slewing Ring Bearing
What is SRR Slewing Ring Bearing?
All sliding elements are manufactured from wear-resistant composite materials;
Low-noise operation with self-lubricating properties;
Multiple designs available for high-speed or heavy-duty applications;
Operating temperature range: -200°C to +250°C;
Easy installation with maintenance-free operation.
Technical Parameters of SRR Slewing Ring Bearing
| Part No. | Dynamic Load P=2.5MPa | Static Load P=17.5MPa | Weight |
F max. [N] | F max. [N] | [g] | |
LIN-00-06 | 200 | 1400 | 2 |
LIN-00-08 | 250 | 1750 | 4 |
LIN-00-10 | 263 | 2538 | 7 |
LIN-00-12 | 480 | 3360 | 9 |
LIN-00-16 | 720 | 5040 | 13 |
LIN-00-20 | 1125 | 7875 | 24 |
LIN-00-25 | 1813 | 12688 | 47 |
LIN-00-30 | 2550 | 17850 | 72 |
