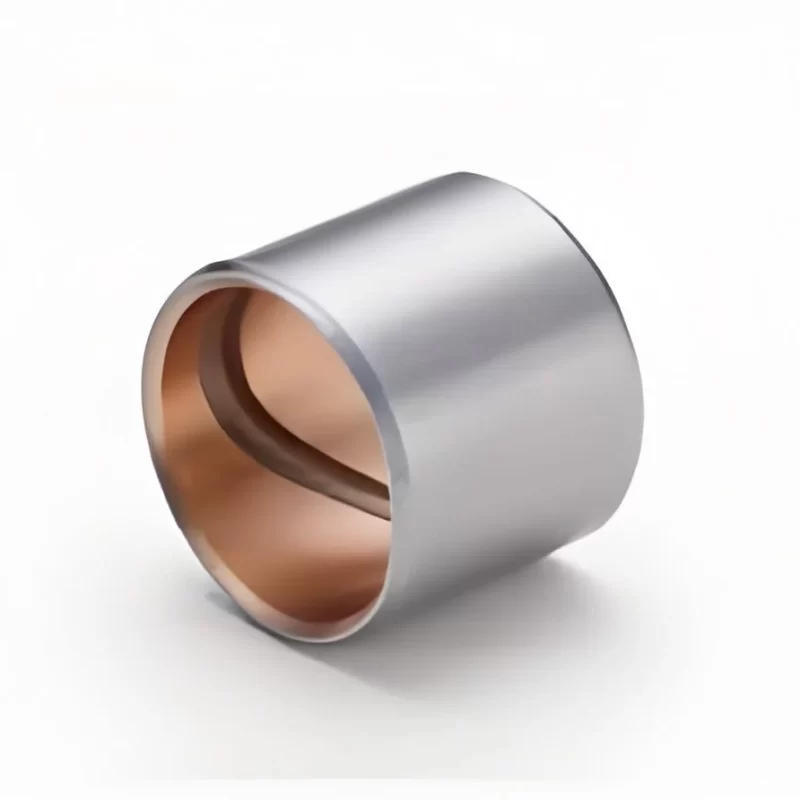

Steel+CuPb24Sn4 ---Bimetal Bushing
It features relatively high fatigue strength and load capacity, along with good sliding performance, but is susceptible to corrosion by lubricating oil. Suitable for moderate load and moderate speed applications. When coated with a soft alloy, it can be used in high-speed internal combustion engine main bushings and connecting rod bushings.
Technical Parameters
| Property | Value | Unit |
|---|---|---|
| Max Load Capacity | 130 | MPa |
| 18,800 | psi | |
| Operating Temperature | -40 to 250 | °C |
| -40 to 482 | °F | |
| Max Linear Speed (Oil) | 10.0 | m/s |
| 2,000 | fpm | |
| Max PV Value | 286,000 | psi·fpm |
| 10.0 | MPa·m/s | |
| Min Hardness (Sliding Layer) | 45 | HB |
| 45 | HRC | |
| Min Hardness (Counterpart) | 45 | HB |
| 45 | HRC |

Metallographic Analysis
Alloy Layer
Steel Base Layer
Equivalent Standards List
| Country | Standard Code |
|---|---|
| USA | SAE-799 |
| Germany | GLYCO68 |
| Japan | JIS-LBC6 |
