Composite Bushing

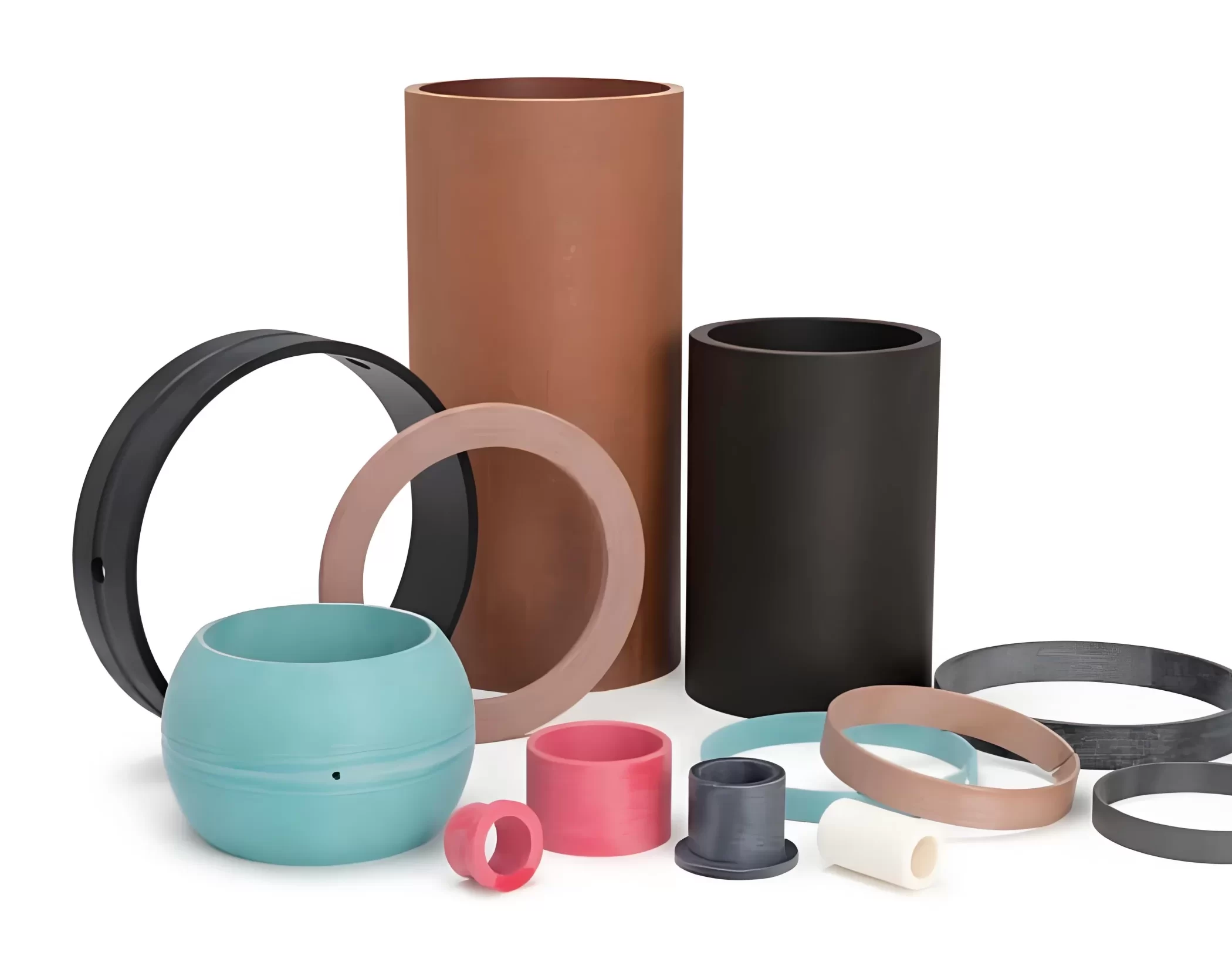

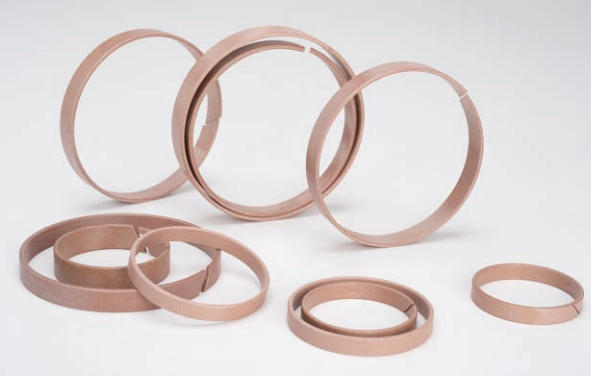

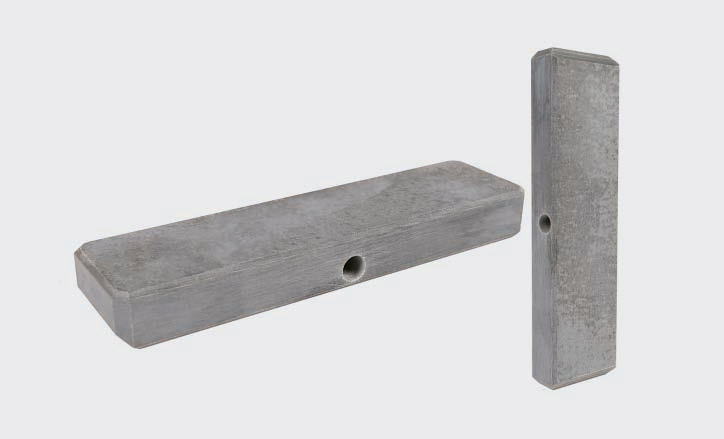

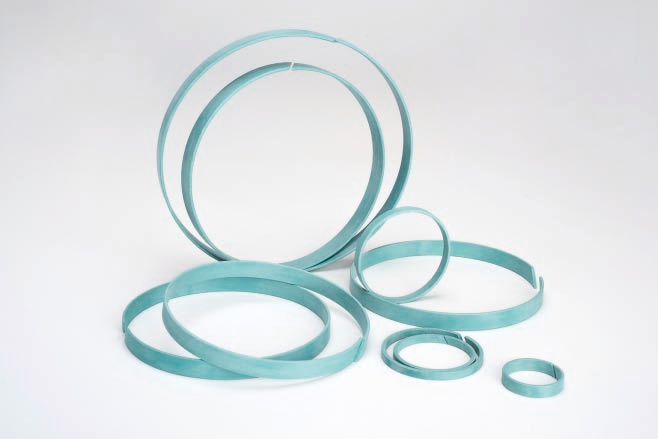

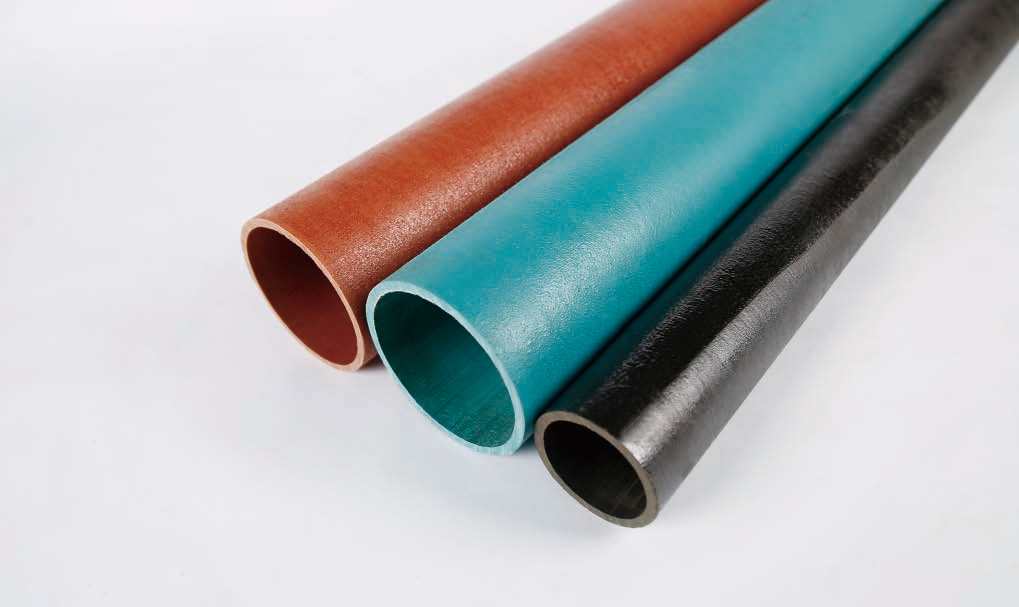

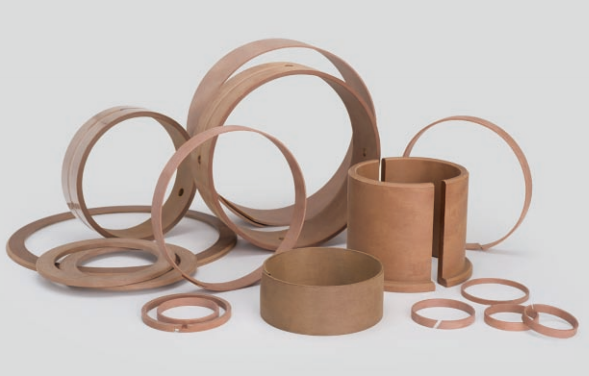

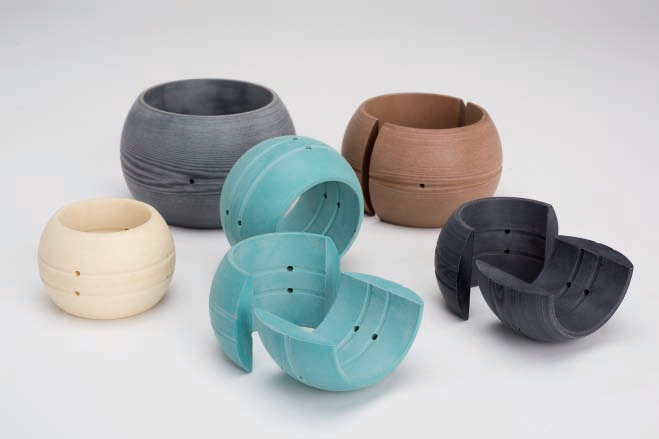

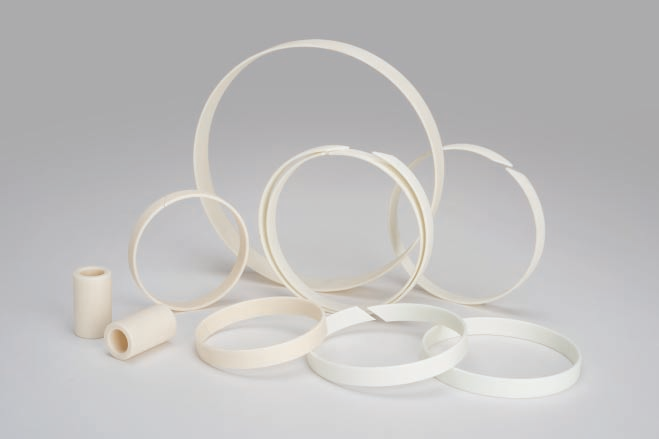

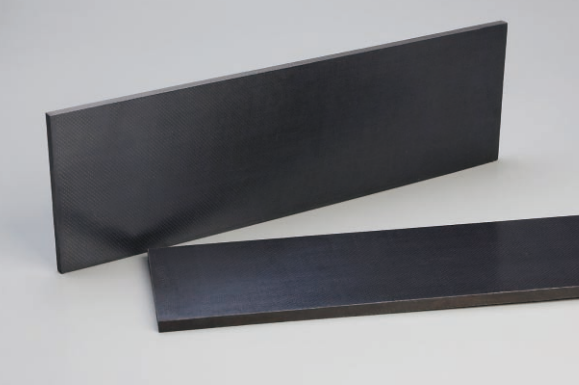

What is Composite Bushing?
A composite bushing is a high-performance component engineered by combining materials like polymers, fibers, and solid lubricants. This design allows for customized performance, balancing strength, wear resistance, and self-lubrication to meet specific application needs.
Key advantages include:
Lightweight & Strong: High strength-to-weight ratio, ideal for weight-sensitive applications.
Corrosion Resistant: Suitable for harsh environments where metals would fail.
Self-Lubricating: Can operate without external lubrication, reducing maintenance.
These bushings are widely used in aerospace, robotics, food processing equipment, and other applications requiring reliability under demanding conditions. Their customizable nature makes them a versatile alternative to traditional metal bushings.
Direct Replacements For
| Brand | Series/Models |
|---|---|
| ISB | FD PTFE strip |
| CSB | CSB-12 |
MYWAY Composite Bushings: The Ultimate Solution Guide
Composite bushings represent a significant evolution in bearing technology, combining multiple materials to achieve superior performance characteristics unattainable with single-material components. This comprehensive guide explores the materials, design principles, advantages, and applications of composite bushings, providing engineers and procurement specialists with essential knowledge for selecting optimal bearing solutions.
1. Introduction to Composite Bushings
Composite bushings are sophisticated bearing components engineered through the strategic combination of two or more distinct materials to achieve performance characteristics superior to their individual constituents. Unlike traditional single-material bushings, these hybrid components leverage the advantages of different materials to overcome limitations in lubrication requirements, load capacity, and environmental resistance. The global market for specialized bushings continues to grow, driven by increasing demands from automotive, aerospace, and industrial machinery sectors .
At their core, composite bushings typically feature a structural reinforcement material (such as fibers or fabrics) embedded within a matrix material (often polymer or resin-based), frequently incorporating solid lubricants for reduced friction. This multi-material approach enables engineers to tailor bearing properties to specific application requirements, creating solutions that excel in challenging operating conditions where conventional bushings would fail prematurely.
2. What Are Composite Bushings?
Composite bushings, sometimes referred to as hybrid bushings or multi-material bushings, are bearing components manufactured through the integration of complementary materials into a unified structure. Unlike simple single-material bushings, composites strategically combine materials to achieve optimal performance across multiple parameters including wear resistance, load capacity, temperature tolerance, and self-lubrication.
The fundamental structure typically consists of:
Reinforcement Phase: High-strength fibers or fabrics (glass, carbon, synthetic, or natural fibers) that provide structural integrity and mechanical strength
Matrix Phase: Polymer or resin base (phenolic, polyester, epoxy, or PTFE) that binds the reinforcement and transfers loads
Functional Additives: Solid lubricants (graphite, MoS₂, PTFE) or other modifiers that enhance specific performance characteristics
This combination results in a synergistic material system where the whole exceeds the sum of its parts. For example, fabric reinforcements provide exceptional strength and impact resistance while the matrix material offers environmental protection and dimensional stability .
3. Advantages of Composite Bushings Over Traditional Materials
3.1 Self-Lubricating Capabilities
One of the most significant advantages of composite bushings is their ability to operate with little or no external lubrication. Through the integration of solid lubricants within the matrix material, these bushings provide continuous lubrication throughout their service life. This “built-in” lubrication system significantly reduces maintenance requirements and eliminates contamination risks in sensitive applications like food processing, pharmaceutical manufacturing, and clean rooms .
3.2 Exceptional Strength-to-Weight Ratio
The strategic use of high-strength reinforcement materials enables composite bushings to achieve remarkable load capacities at relatively low weights. For instance, fiber-reinforced composites can provide strength comparable to metals at a fraction of the weight, making them ideal for applications where weight reduction is critical, such as aerospace and automotive industries .
3.3 Corrosion and Chemical Resistance
Unlike metallic bushings that suffer from galvanic corrosion, composite bushings exhibit superior resistance to water, chemicals, and other corrosive agents. This inherent corrosion resistance makes them particularly valuable in harsh operating environments including marine applications, chemical processing equipment, and outdoor machinery .
3.4 Vibration Dampening and Noise Reduction
The viscoelastic properties of polymer matrices in composite bushings provide excellent vibration absorption and noise reduction capabilities. This characteristic is particularly valuable in applications where quiet operation is essential, such as office equipment, residential appliances, and precision machinery .
3.5 Customizable Performance Properties
Perhaps the most compelling advantage of composite bushings is the ability to engineer their properties for specific applications. By varying the reinforcement type, matrix composition, and additives, manufacturers can create bushings optimized for particular operating conditions regarding temperature, load, speed, and environmental exposure .
4. Material Composition and Types
4.1 Reinforcement Materials
The reinforcement phase in composite bushings provides the primary structural framework:
Fabric Reinforcements: Cotton, polyester, or other woven fabrics provide multi-directional strength and excellent impact resistance. These are commonly used in PFC-1 and PFC-3 materials for applications requiring high load capacity and durability.
Synthetic Fibers: High-strength synthetic fibers like aramid or advanced polyesters offer exceptional strength-to-weight ratios and fatigue resistance, used in premium grades like PFC-7.
Carbon and Glass Fibers: For the most demanding applications, carbon and glass fibers provide maximum strength and stiffness, often employed in aerospace and advanced industrial applications .
4.2 Matrix Materials
The matrix binds the reinforcement and transfers loads:
Phenolic Resins: Thermoset phenolic resins offer excellent temperature resistance and mechanical properties, serving as the base for PFC-1, PFC-2, and PFC-3 materials.
Polymer Composites: Advanced engineering polymers like PTFE, POM, or nylon provide low friction and good wear resistance, frequently used in self-lubricating composites .
Polyester and Epoxy Resins: These resins offer excellent chemical resistance and mechanical properties, used in PFC-20, PFC-21, and PFC-30 formulations for marine and corrosive environments.
4.3 Solid Lubricants
Integrated solid lubricants are essential for self-lubricating performance:
Graphite: Provides excellent lubricity across a wide temperature range, used in PFC-2 for reduced friction.
Molybdenum Disulfide (MoS₂): Offers superior lubrication in high-load applications, incorporated in PFC-5.
PTFE: Delivers the lowest coefficient of friction, used in premium self-lubricating composites .
5. Key Design Considerations for Composite Bushings
5.1 Load Conditions
Understanding the specific load profile is essential for selecting the appropriate composite bushing:
Static vs. Dynamic Loads: Some composites excel under continuous static loads while others perform better under dynamic conditions.
Load Magnitude and Direction: Radial, axial, and moment loads require different reinforcement strategies and bushing geometries.
Impact and Shock Loading: Applications with significant impact or shock benefit from composites with higher elasticity and tear resistance .
5.2 Environmental Factors
Environmental conditions significantly influence material selection:
Temperature Range: Composite materials have specific operating temperature limits beyond which performance degrades rapidly.
Chemical Exposure: Resistance to specific chemicals, oils, or solvents must be considered when selecting matrix materials.
Moisture and Humidity: Some composite materials absorb moisture, affecting dimensional stability and performance .
5.3 Operational Parameters
Key operational considerations include:
Rotational vs. Oscillating Motion: Different motion profiles require different lubrication and wear characteristics.
Speed and PV Limits: Each composite material has specific pressure-velocity (PV) limits that must not be exceeded.
Expected Service Life: Applications requiring extended service life may necessitate premium materials with enhanced wear resistance .
6. Applications Across Industries
6.1 Automotive and Transportation
Composite bushings find numerous applications in the automotive sector, including suspension systems, engine components, chassis linkages, and transmission elements. Their self-lubricating capabilities, corrosion resistance, and weight savings make them ideal for modern vehicle designs focused on reduced maintenance and improved efficiency .
6.2 Industrial Machinery
In industrial settings, composite bushings provide reliable performance in hydraulic cylinders, pneumatic systems, conveyor equipment, and processing machinery. Their ability to operate with minimal maintenance and withstand contaminated environments makes them valuable for maximizing equipment uptime .
6.3 Marine and Offshore Applications
The exceptional corrosion resistance of certain composite bushings makes them ideal for marine applications such as stern tube bearings, rudder bearings, hatch cover pads, and deck machinery. Materials like PFC-22 and PFC-30 specifically address the challenges of saltwater environments while providing long service life without lubrication .
6.4 Aerospace and Defense
The aerospace industry utilizes composite bushings in control surface linkages, landing gear components, and access panel hinges where weight reduction, reliability, and maintenance-free operation are critical. Their inherent corrosion resistance and ability to function across a wide temperature range make them suitable for demanding aerospace environments .
7. MYWAY Composite Bushings: Engineering Excellence
At MYWAY, we have leveraged decades of expertise in composite material science to develop a comprehensive range of high-performance composite bushings tailored to diverse industrial applications. Our solutions are engineered to deliver exceptional reliability, extended service life, and reduced total cost of ownership.
7.1 Advanced Material Technology
MYWAY composite bushings incorporate state-of-the-art material formulations including:
PFC Series Materials: From standard fabric-reinforced phenolics to advanced self-lubricating composites with solid lubricant additions
Custom Formulations: Tailored material solutions engineered for specific application challenges and operating conditions
Quality Assurance: Rigorous material testing and quality control ensure consistent performance across production batches
7.2 Engineering and Design Support
Our technical team provides comprehensive engineering support:
Application Analysis: Detailed assessment of your specific requirements including load conditions, environmental factors, and performance expectations
Material Selection Guidance: Expert recommendations for optimal material selection based on your operational parameters
Custom Engineering Solutions: Tailored bushing designs for unique applications or challenging operating conditions
7.3 Manufacturing Capabilities
MYWAY utilizes advanced manufacturing processes to produce precision composite bushings:
Precision Machining: Computer-controlled machining ensures tight tolerances and consistent quality
Custom Fabrication: Ability to produce bushings in virtually any size, shape, or configuration
Quality Assurance: Comprehensive inspection and testing protocols verify dimensional accuracy and material properties
8. Why Choose MYWAY for Your Composite Bushing Requirements?
MYWAY stands as your trusted partner for high-performance composite bushing solutions. Our commitment to technological innovation, manufacturing excellence, and customer satisfaction ensures that you receive optimal bearing solutions for your specific applications.
We invite you to experience the MYWAY difference:
Technical Expertise: Leverage our extensive application experience and technical knowledge
Product Quality: Benefit from our rigorous quality standards and consistency
Customer Focus: Enjoy responsive service and tailored solutions
Contact MYWAY today to discuss your composite bushing requirements. Our technical specialists are ready to help you select or develop the ideal solution for your application, ensuring enhanced performance, reduced maintenance, and improved operational reliability.
MYWAY Composite Bushing FAQs
1. What are the primary advantages of composite bushings over bronze bushings?
Composite bushings offer several significant advantages including self-lubrication capabilities, corrosion resistance, weight reduction, vibration dampening, and noise reduction. They typically operate without external lubrication, eliminate galvanic corrosion issues, and provide excellent performance in contaminated environments.
2. What temperature ranges can composite bushings withstand?
Temperature resistance varies by material formulation. Standard fabric-reinforced phenolic composites typically operate effectively from -40°C to 120°C, while advanced formulations with high-temperature matrices can withstand intermittent exposure up to 200°C or higher.
3. How do self-lubricating composite bushings work without external lubrication?
Self-lubricating composites incorporate solid lubricants such as graphite, MoS₂, or PTFE within the matrix material. During operation, these lubricants gradually transfer to the bearing surface, creating a continuous lubricating film that reduces friction and wear without external lubrication.
4. What factors should I consider when selecting a composite bushing?
Key selection factors include load type and magnitude, operating speed, temperature range, environmental conditions, motion type (continuous rotation vs. oscillation), and required service life. Our technical team can help assess these factors to recommend the optimal material and design.
5. Can composite bushings be used in submerged applications?
Yes, specific composite formulations like PFC-22 and PFC-30 are engineered specifically for submerged operation in fresh or saltwater. These materials exhibit minimal water absorption and provide excellent long-term performance in marine environments.
6. Are composite bushings suitable for high-load applications?
Absolutely. Many composite bushings, particularly those with fabric reinforcements and high-performance matrices, offer exceptional load-bearing capabilities. Some advanced composites can withstand static pressures exceeding 100 MPa while maintaining excellent wear characteristics.
7. How long do composite bushings typically last?
Service life varies significantly based on application conditions including load, speed, temperature, and alignment. Under appropriate operating conditions, composite bushings typically provide extended service life, often outperforming metallic alternatives while requiring minimal maintenance.
