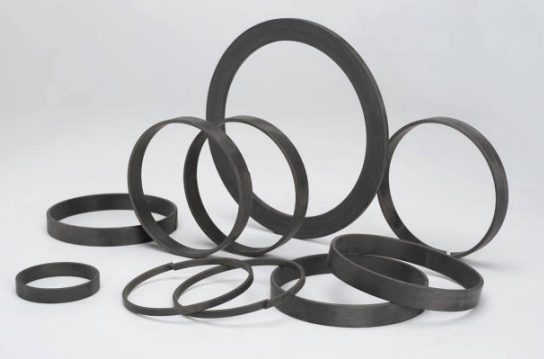

PFC-5 High-Strength Fabric-Reinforced Phenolic Resin Support Rings and Guide Rings

PFC-5 is a high-strength composite material manufactured by winding high-quality cotton fabric impregnated with a soluble phenolic resin uniformly dispersed with molybdenum disulfide (MoS₂). The material is formed under specific temperature and pressure. It exhibits high mechanical strength, excellent friction and wear resistance, good temperature tolerance, and the ability to withstand strong vibrations under semi-static conditions, impact loads, and slight rotational loads. It can operate with minimal or no lubrication, making it suitable for applications in engineering machinery, shipbuilding, hydroelectric power generation, and other industries.

Typical Applications of PFC-5 High-Strength Fabric-Reinforced Phenolic Resin Support Rings and Guide Rings

  • Guide rings, bushings, and shaft sleeves for engineering machinery

  • Guide sleeves for columns of hydraulic machinery and forging presses

  • Bushings for water conservancy machinery

  • Marine bearings

Performance Specifications: PFC-5 High-Strength Fabric-Reinforced Phenolic Resin Support Rings and Guide Rings

ParameterValueUnit
Part NumberPFC-5
ColorGrey
Density1.2 – 1.4g/cm³
Ultimate Compressive Strength330MPa
Tensile Strength45MPa
Impact Strength24J/m
Hardness (Rockwell)90HRM
Coefficient of Friction (Dry)0.15 – 0.30
Coefficient of Friction (Lubricated)0.07 – 0.11
Operating Temperature-40 ~ +130°C

Note: The data provided is for general reference only and may vary depending on the specific application, environment, and media.
