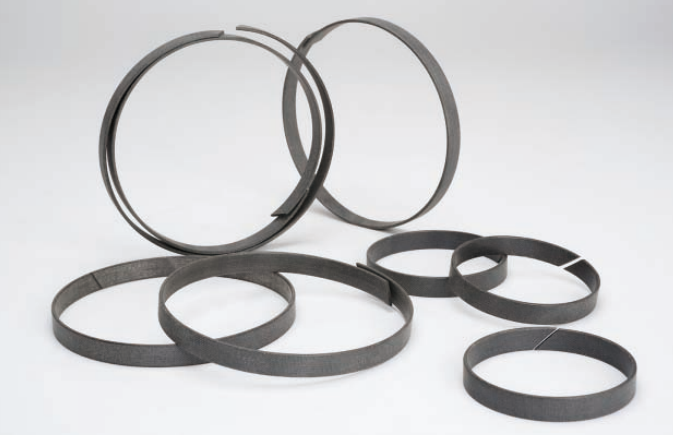

PFC-7 High-Strength Fabric-Reinforced Phenolic Resin Support Rings and Guide Rings
PFC-7 High-Strength Fabric-Reinforced Phenolic Resin Support Rings and Guide Rings

PFC-7 High-Strength Fabric-Reinforced Phenolic Resin Support Rings and Guide Rings

PFC-7 is a high-strength composite material based on modified phenolic resin, reinforced with ultra-strong specialty fibers, and added with solid lubricants. It is processed under specific temperature and pressure. Compared to other fiber-reinforced (cotton fiber, polyester fiber, polyamide fiber, etc.) phenolic products, PFC-7 exhibits superior compressive strength, tensile strength, wear resistance, flame retardancy, heat resistance, and chemical corrosion resistance. It is capable of adapting to complex working conditions in various demanding environments.

Typical Applications of PFC-7 High-Strength Fabric-Reinforced Phenolic Resin Support Rings and Guide Rings

  • Guide rings

  • Support rings for mining and coal machinery equipment

  • Spare parts for shipbuilding and marine machinery

  • Spare parts for water conservancy and wind power equipment

  • Spare parts for offshore mooring systems and maritime platforms

PFC-7 High-Strength Fabric-Reinforced Phenolic Resin Support Rings and Guide Rings

Performance Specifications: PFC-7 High-Strength Fabric-Reinforced Phenolic Resin Support Rings and Guide Rings

ParameterValueUnit
Part NumberPFC-7
ColorGrey
Density1.2 – 1.4g/cm³
Ultimate Compressive Strength460MPa
Tensile Strength74MPa
Impact Strength45J/m
Hardness (Rockwell)110HRM
Coefficient of Friction (Dry)0.15 – 0.25
Coefficient of Friction (Lubricated)0.07 – 0.12
Operating Temperature-40 ~ +200°C

Note: The data provided is for general reference only and may vary depending on the specific application, environment, and media.
