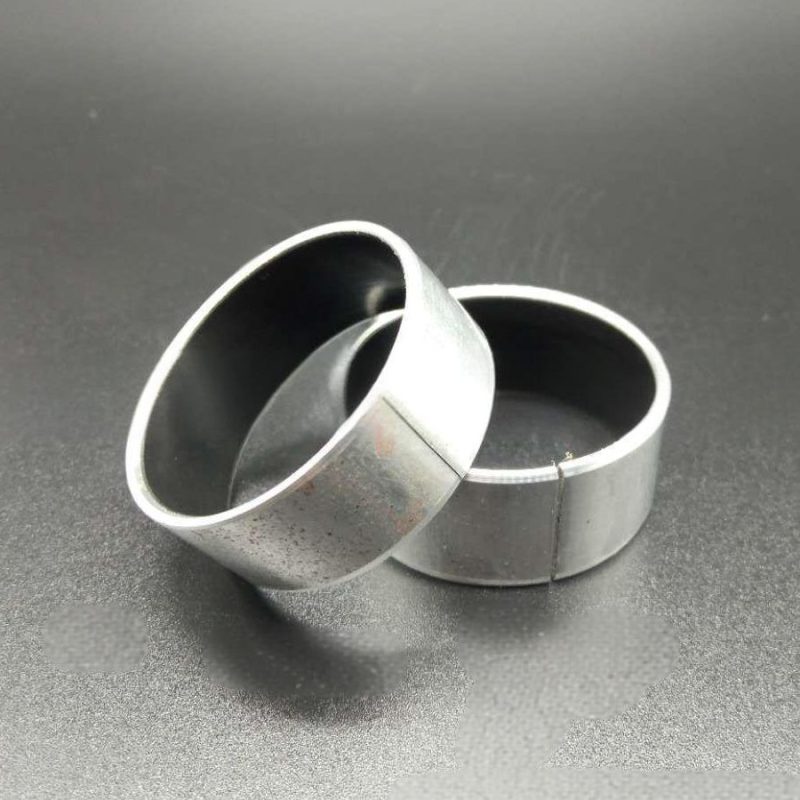

DU/SF-1A Aluminum-Based Self-Lubricating Bushing
The thicker working layer of the aluminum-based self-lubricating bushing allows for post-assembly machining to improve fitting accuracy. The surface working layer offers excellent wear resistance, self-lubricating properties, and functions to dampen vibration and reduce noise, while the aluminum alloy substrate meets lightweight design requirements.
Technical Parameters
| Item | Value / Condition |
|---|---|
| Load Capacity | |
| Static Load | 80 N/mm² |
| Low-speed Operation | 40 N/mm² |
| Rotary/Oscillating Motion | 20 N/mm² |
| Coefficient of Friction μ | 0.05–0.20 |
| Linear Speed | |
| Dry Friction | 1 m/s |
| Fluid Lubrication | >1 m/s |
| PV Value (Dry) | |
| Intermittent Operation | 2.8 N/mm²·m/s |
| Continuous Operation | 1.8 N/mm²·m/s |
| Thermal Conductivity | 23 W/(m·K) |
| Coefficient of Thermal Expansion | 24 × 10⁻⁶ K⁻¹ |
| Operating Temperature | –65 °C to +260 °C |
