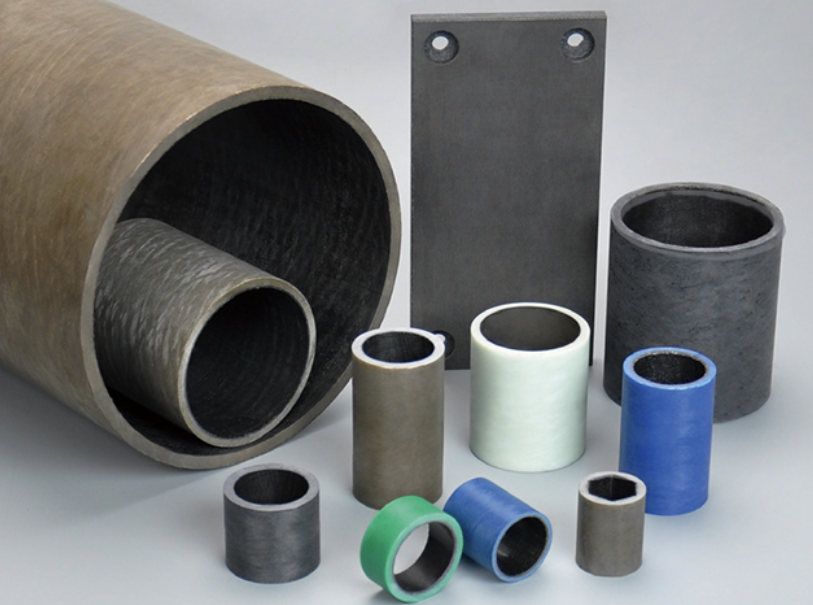

FWR Filament Wound Bearing
What is FWR Filament Wound Bearing?
- MYWAY-FWR bearing material uses high-strength glass fiber reinforced high-temperature epoxy resin as the load-bearing layer, and special fibers with PTFE fibers as the sliding layer.
- This construction provides excellent wear resistance and a very low friction coefficient under high-load, low-speed operating conditions.
- Maintains effective self-lubricating properties and high bearing capacity even during extended operation without lubrication.
- Extremely high dynamic load capacity, up to 160 MPa.
- Outstanding wear resistance.
- Very low friction coefficient, typically under 0.12.
- Capable of long-term dry running without oil supply.
Technical Parameters of FWR Filament Wound Bearing
General properties | Unit | CRB | CRG | CRH | CRM | CRP | CRW | CRF |
Density | g/cm3 | 1.90 | 1.90 | 1.90 | 1.90 | 1.90 | 1.90 | 1.30 |
Max. water absorption | % | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| Max. PV value | N/mm2×m/s | 1.5 | 1.5 | 1.5 | 1.2 | 1.0 | 1.2 | 1.0 |
Coefficient of friction | µ | 0.03-0.12 | 0.03-0.12 | 0.03-0.12 | 0.05-0.15 | 0.03-0.12 | 0.05-0.15 | 0.05-0.15 |
| Long-term application temperature | ℃ | +160 | +160 | +200 | +160 | +160 | +160 | +130 |
| Short-term application temperature | ℃ | +180 | +180 | +260 | +180 | +180 | +180 | +160 |
| Lowest application temperature | ℃ | -196 | -196 | -196 | -196 | -196 | -196 | -40 |
Max. Speed | m/s | 0.13 | 0.13 | 0.13 | 0.13 | 0.50 | 0.13 | 0.13 |
Compressive strength | MPa | 420 | 420 | 620 | 420 | 420 | 420 | 150 |
Max. static load | MPa | 240 | 240 | 420 | 240 | 240 | 240 | 150 |
Max. dynamic load | MPa | 140 | 140 | 160 | 120 | 30 | 120 | 75 |
| Coefficient of thermal expansion | 10-6×K-1 | 13 | 13 | 13 | 13 | 13 | 13 | 50 |
Color | – | Brown | Black | Dark grey | Blue | White | Green | Dark grey |
