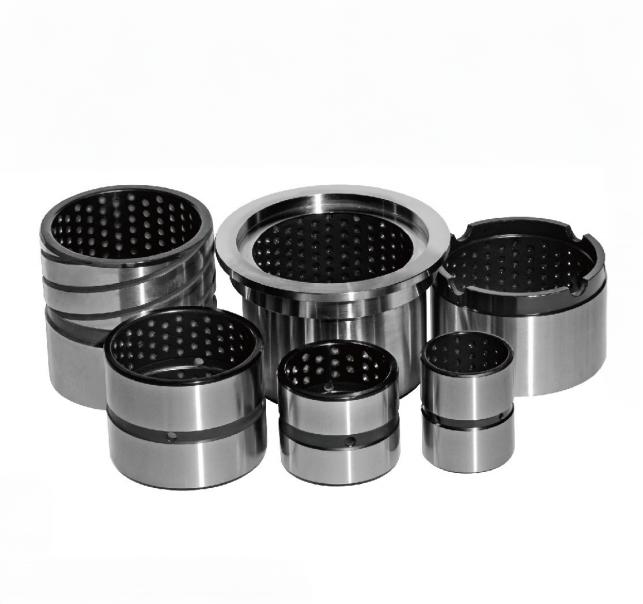

Honeycomb Bushing
Seamless Design with Honeycomb Structure: Features a seamless construction with a uniform inner wall pattern of conical blind holes, forming a efficient honeycomb lattice.
Self-Lubricating & Rapid Oil Film Formation: The grinding process generates lubricant naturally, ensuring immediate oil film formation on startup.
High Oil Capacity & Low Maintenance: Honeycomb pattern holds 3-5x more oil than standard grooves, enabling extended maintenance-free operation.
Uniform Lubrication, No Dead Zones: Fixed circumferential spacing ensures complete oil coverage across any sleeve size with minimal rotation.
Enhanced Durability: The honeycomb structure significantly increases load-bearing capacity and extends service life.
Patented Technology: Represents the latest generation in engineering machinery shaft sleeves (Patent No.: ZL201720260674.6).
Technical Parameters
| Property | Specification / Value |
| Material | Low carbon alloy steel (e.g., 20CrMnTi, 20CrMo) |
| Heat Treatment | Surface carburizing & quenching, or QPQ treatment |
| Surface Treatment | Dual composite friction-reducing treatment |
| Lubricating Type | Honeycomb structure |
| Application | Excavators, Rotary Drilling Rigs, Large Loaders, Diaphragm Wall Grab |
| Friction Factor | < 0.1 |
| Critical Using Temp | 350 °C |
| Critical Dynamic Load | 250 N/mm² |
| Critical Speed | 1.5 m/s |
| Wearability | Excellent |
| Anti-impact Ability | Excellent |
| Anti-corrosion Ability | Very Good |
| Oiling Interval Time | Extremely Long |
