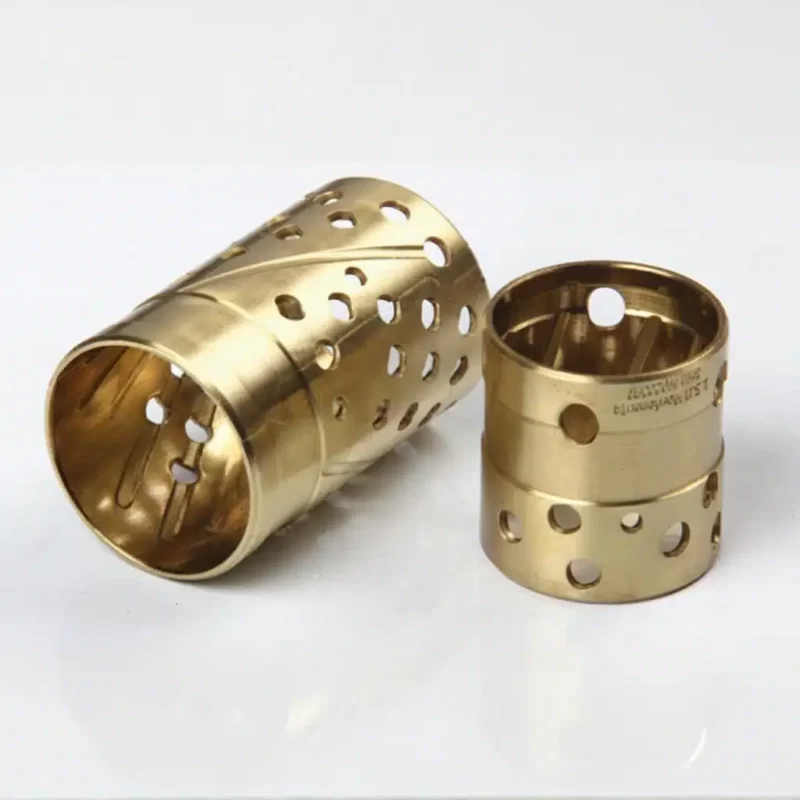

Wrapped Brass Bushing
This product is based on a specially formulated high-density bronze material. The surface can be rolled with oil grooves or holes according to customer requirements. It offers high load capacity and excellent wear resistance, and is widely used in construction machinery and machine tool industries.
Technical Parameters
| Property | Value |
|---|---|
| Density | 8.4 g/cm³ |
| Compressive Strength | 440 N/mm² |
| Thermal Conductivity | 71 W/(m·K) |
| Linear Expansion Coefficient | 19.2 × 10⁻⁶/K |
| Hardness | 80-110 HB |
| Elongation | 30% |
| Material Designation | CuZn31Si |
