Beyond the Round: How Special Shape Bushings Solve Your Toughest Engineering Challenges
In the world of machinery and motion, the space between “it works” and “it works flawlessly” is often defined by a critical, yet frequently overlooked component: the bushing. While standard round bushings serve countless applications, engineers constantly face a harsh reality—not every shaft, pivot, or linkage fits neatly into a perfect circle. Cramped equipment layouts, unconventional load paths, and the relentless demand for maintenance-free operation push standard solutions to their limits. This is where the Special Shape Bushing moves from a custom option to an engineering necessity. Tailored to fit unique spatial and functional demands, these components are the secret to unlocking higher machine density, reliability, and performance. This article explores the transformative role of special shape bushings and introduces how MYWAY Bushings provides the precision-engineered solutions your most challenging applications require.
Table of Contents
1. The "Why" Behind the Special Shape: Confronting Common Design Pain Points
Standard bushings assume a world of ideal alignment and ample space. Real-world engineering is messier. Imagine designing a heavy-duty industrial manipulator with complex linkage points, or retrofitting a legacy marine propulsion system where every millimeter counts. A round bushing might force a compromise in the housing design, leading to a bulkier, heavier, and less efficient assembly.
The need for a special shape arises from core challenges:
Spatial Constraints: Equipment is becoming more compact. A D-shaped bushing or a flattened design can save crucial space compared to a full round counterpart, allowing for more slender assemblies or fitting into pre-existing, non-circular housings.
Unconventional Load Management: Some applications experience dominant loads in one specific direction. A custom-shaped bushing can be engineered with reinforced geometry in that axis, distributing stress more effectively than a uniformly round design and dramatically extending service life.

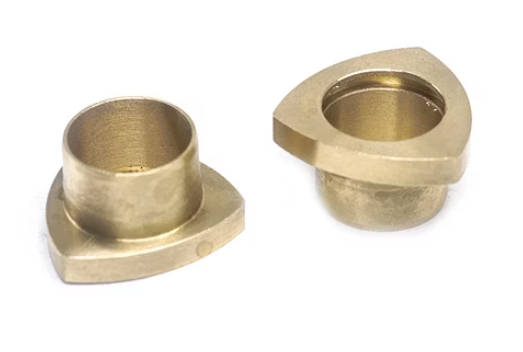

Integration & Anti-Rotation: A bushing that needs to be locked in place to prevent spinning often requires a keyway or a flat. Integrating these features directly into the bushing’s outer profile—creating a square, hex, or other lobed shape—simplifies installation and enhances reliability over using additional pins or set screws.
Facilitating Maintenance: As highlighted in marine bearing solutions like Cooper split bearings, split design special bushings are a game-changer. They allow for inspection, repair, or replacement without the need to disassemble entire shafts or surrounding machinery, a critical factor in minimizing costly downtime in industries from shipping to energy production.
2. The MYWAY Solution: Engineering Precision for Unique Geometries
At MYWAY, we understand that a special shape bushing is not merely a “machined oddity.” It is a holistic performance solution. Our capability to deliver goes beyond simple machining; it encompasses design collaboration, advanced material science, and precision manufacturing.
1. Design-First Partnership:
We start by understanding your functional goal. Is it about load, space, lubrication, or assembly? Our engineers work with your blueprints or concepts to model the optimal geometry. Using advanced CAD and simulation tools, we can analyze stress distribution and wear patterns in complex shapes like conical bushings for tapered shafts or lever bearings (e.g., DU/SF-1 types) for oscillating movements, ensuring the design is robust before the first piece is cut.
2. Mastery of Advanced Materials:
The shape is only half the story; the material gives it life. MYWAY specializes in selecting and processing the ideal alloy for your specific environment:
Self-Lubricating Champions: For inaccessible or maintenance-hostile environments, we engineer bushings from materials like DU/SF-1 (steel-backed PTFE/copper) or DX/SF-2 (boundary lubricating) composites. These provide long-lasting, low-friction performance without grease points, ideal for food processing, clean rooms, or agricultural machinery.
High-Load Bronze Alloys: For extreme pressure and wear resistance, we offer special shape bronze bushings in alloys like C93200 (SAE 660) or aluminum bronze. Their excellent embeddability and corrosion resistance make them perfect for heavy industrial, marine, and off-highway equipment.
Custom Composite Solutions: Following the principle seen in oilless cam plates, we can integrate solid lubricants (graphite, PTFE) directly into the matrix of bronze or other alloys. This creates a part that is both structurally strong and inherently lubricating, perfect for slow, high-load oscillatory motion.
3. Precision Manufacturing for Complex Forms:
Creating a perfect D-bushing, conical sleeve, or intricate piston pin bushing requires advanced technology. MYWAY utilizes state-of-the-art multi-axis CNC machining centers and CNC grinding. This allows us to hold micron-level tolerances on internal and external diameters, even when they are non-concentric or feature complex contours, ensuring a perfect press-fit and optimal running clearance.
3. Key Applications Where Special Shapes Shine
| Application Sector | Typical Special Bushing Type | Key Benefit Solved |
|---|---|---|
| Heavy Machinery & Construction | Flanged & Square-Hole Bushings for linkage points. | Handles high impact loads, provides secure anti-rotation, simplifies assembly in dirty environments. |

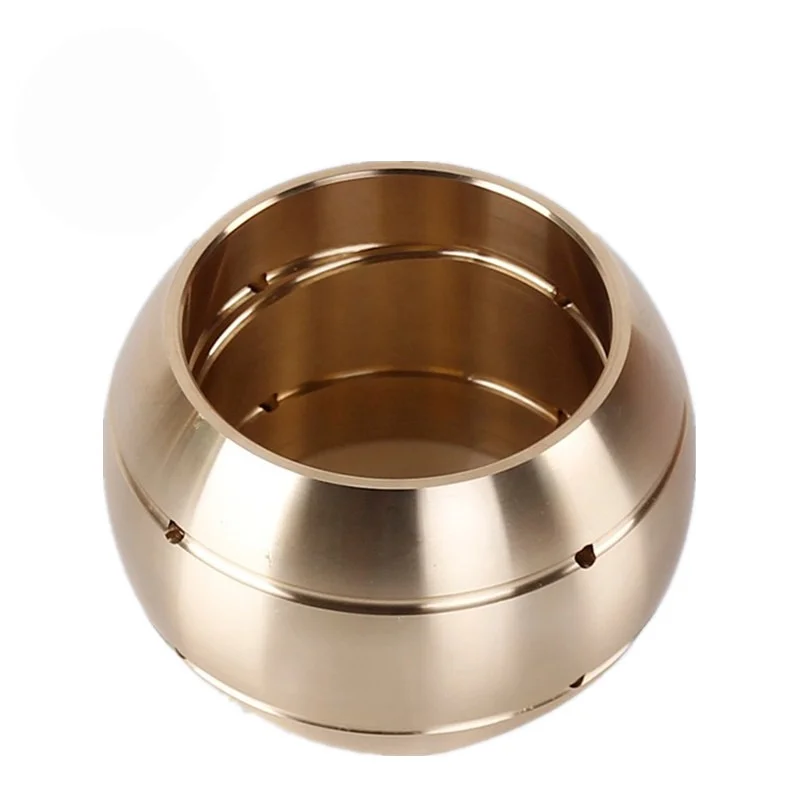

| Marine & Offshore | Split Cylindrical & Spherical Seat Bushings for rudder stocks and propeller shafts. | Enables maintenance and inspection without full disassembly, critical for operational uptime at sea. |

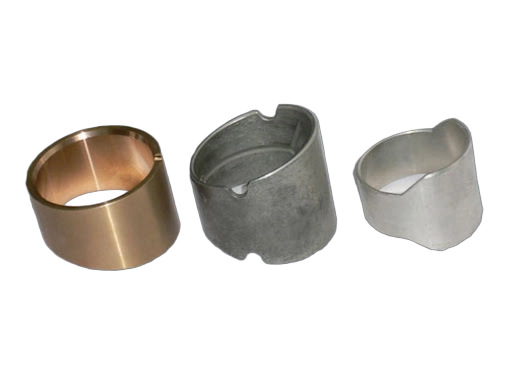

| Automotive & Hydraulics | Piston Pin Bushings, D-Shaped Control Arm Bushings. | Saves space and weight in dense engine/transmission assemblies, manages specific directional loads. |
| Industrial Automation & Robotics | Cam Followers, Needle Roller Units, Custom Lever Bearings. | Provides precise motion guidance in compact joints, offers high stiffness and long life with minimal lubrication. |
| Metal Stamping & Presses | Graphite-Embedded Cam Positive Plates, Special Wear Strips. | Delivers self-lubrication in high-load, low-speed sliding applications, reducing maintenance and contamination. |
4. Why MYWAY is Your Ideal Partner for Special Shape Bushings
Choosing MYWAY means partnering with a specialist that views complexity as a standard challenge. We offer:
End-to-End Customization: From your sketch, CAD model, or a worn sample, we handle reverse engineering, material recommendation, prototyping, and full-scale production.
Uncompromising Quality Control: Every bushing, regardless of shape, is subject to rigorous dimensional and material verification, ensuring performance as simulated.
Deep Technical Collaboration: We become an extension of your engineering team, providing insights not just on manufacturability, but on how to enhance the design for greater durability and cost-effectiveness.
Ready to solve your unique motion control challenge? Don’t let a standard component limit your design. Contact MYWAY today to discuss your special shape bushing requirement.
5. Frequently Asked Questions (FAQ)
Q1: My design has a very tight, non-circular space. Can you really make a bushing for that?
Absolutely. This is our core expertise. We regularly produce D-shaped, rectangular, hexagonal, and fully custom peripheral-shaped bushings. Send us your spatial constraints or housing drawing, and our engineers will propose an optimal geometry.
Q2: What are the advantages of a self-lubricating special shape bushing versus a standard oil-lubricated one?
Self-lubricating composites (like our DU-type materials) eliminate the need for grease fittings and re-lubrication schedules. This is crucial for sealed-for-life assemblies, clean environments, or applications where maintenance access is dangerous or impossible. They reduce downtime and contamination risk.
Q3: I have an old machine with a worn, odd-shaped bushing. I don’t have the original drawings. Can you help?
Yes. We specialize in reverse engineering. You can send us the worn component or its housing. We will meticulously measure it, account for wear patterns, and reproduce a new bushing—often suggesting material upgrades to outperform the original.
Q4: For a split special bushing, how do you ensure precision?
We manufacture split bushings as a complete unit before precision-cutting them. This guarantees that when the two halves are assembled, the bore is perfectly round and concentric, and the outer dimensions match precisely, ensuring proper fit and load distribution.
Q5: Are special shape bushings significantly more expensive and have longer lead times than standard ones?
While there is an upfront engineering and setup cost, the total cost of ownership is often lower. By solving a design bottleneck, you save on assembly time, prevent machine downtime, and extend component life. Lead times are project-dependent but we prioritize efficient prototyping to confirm the design before full production run.
