Cylindrical Roller Bearings: High-Capacity, High-Speed Solutions
Introduction
In the world of rotating machinery, where heavy loads meet high speeds, the choice of bearing isn’t just a component decision—it’s a critical business decision impacting uptime, maintenance costs, and overall productivity. While ball bearings are versatile, there’s a powerhouse designed explicitly for demanding radial loads: the Cylindrical Roller Bearing.
This guide cuts through the technical jargon to explain why cylindrical roller bearings are indispensable in industries from mining and wind energy to advanced machine tools. We’ll explore their types, unmatched benefits, and how partnering with an expert manufacturer like MYWAY Bushings can unlock even greater reliability for your equipment.
Table of Contents
1. What Are Cylindrical Roller Bearings?

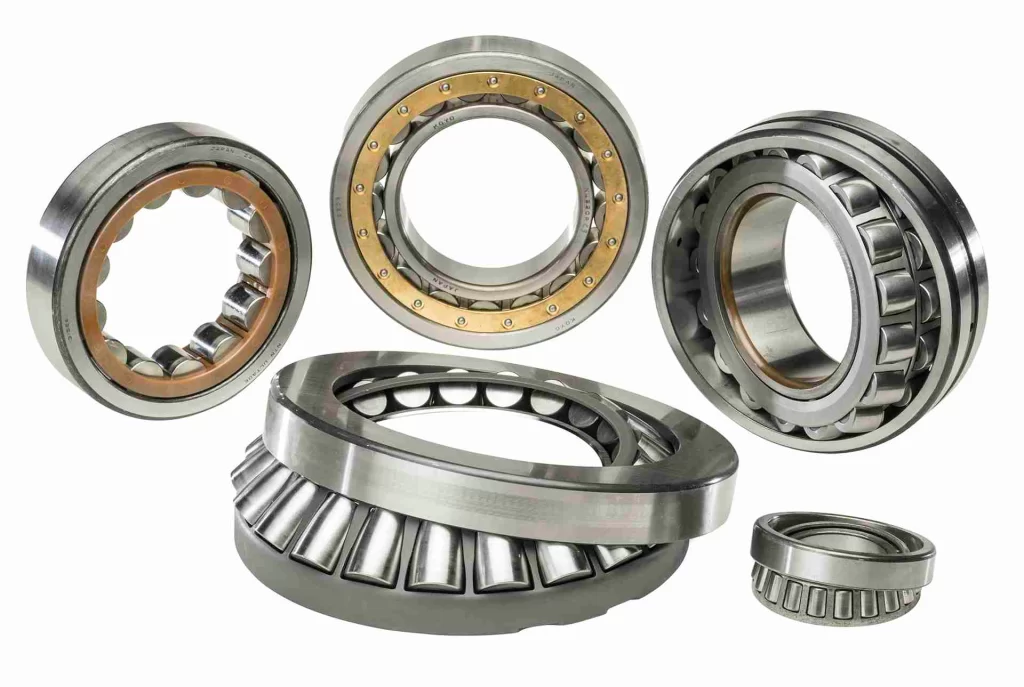

Cylindrical roller bearings are a type of rolling-element bearing where cylinders are used as the rolling elements. Unlike the point contact in ball bearings, these rollers make linear contact with the raceways. This fundamental design difference translates to a significantly larger contact area, allowing them to distribute heavy radial loads across a broader surface.
Imagine supporting a heavy weight: a single point (ball bearing) versus a solid platform (roller bearing). The platform handles the weight more efficiently and stably. This principle makes cylindrical roller bearings the champion for applications with severe radial forces, offering higher load capacity, greater rigidity, and often a longer service life under appropriate conditions.
2. Types and Designs: Finding the Perfect Fit
Cylindrical roller bearings are not one-size-fits-all. Their design variations cater to specific operational needs. Here’s a breakdown of the main types:

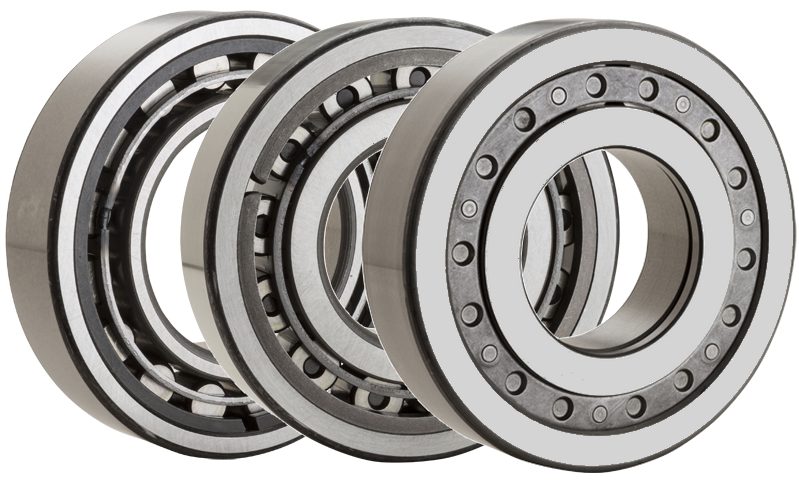

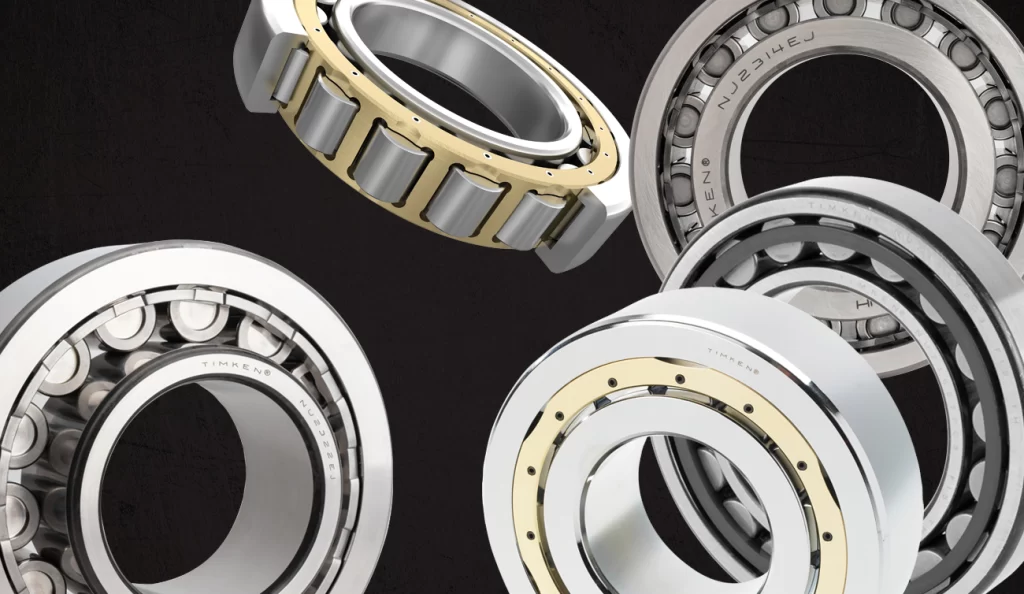

Single Row Cylindrical Roller Bearings (NU, NJ, N, NUP designs): The most common type. Designs like NU (with ribs on the outer ring) and NJ (with ribs on both rings) allow for axial displacement of the shaft, making them ideal as “free-end” bearings in applications with thermal expansion.

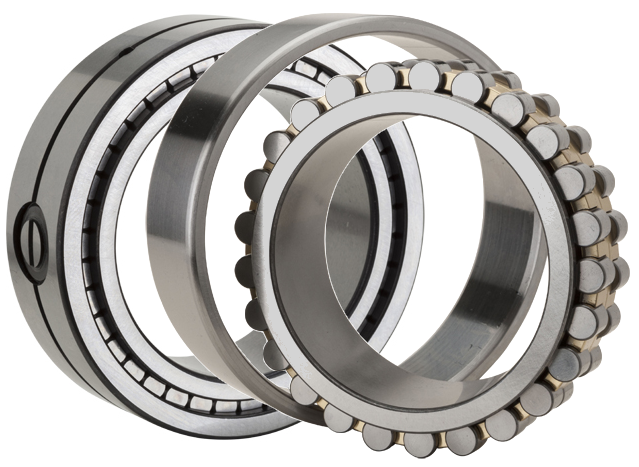

Double Row Cylindrical Roller Bearings (NN, NNU designs): With two rows of rollers, these bearings provide even higher radial load capacity and stiffness. They are a preferred choice for precision machine tool spindles and applications where shaft deflection must be minimized.

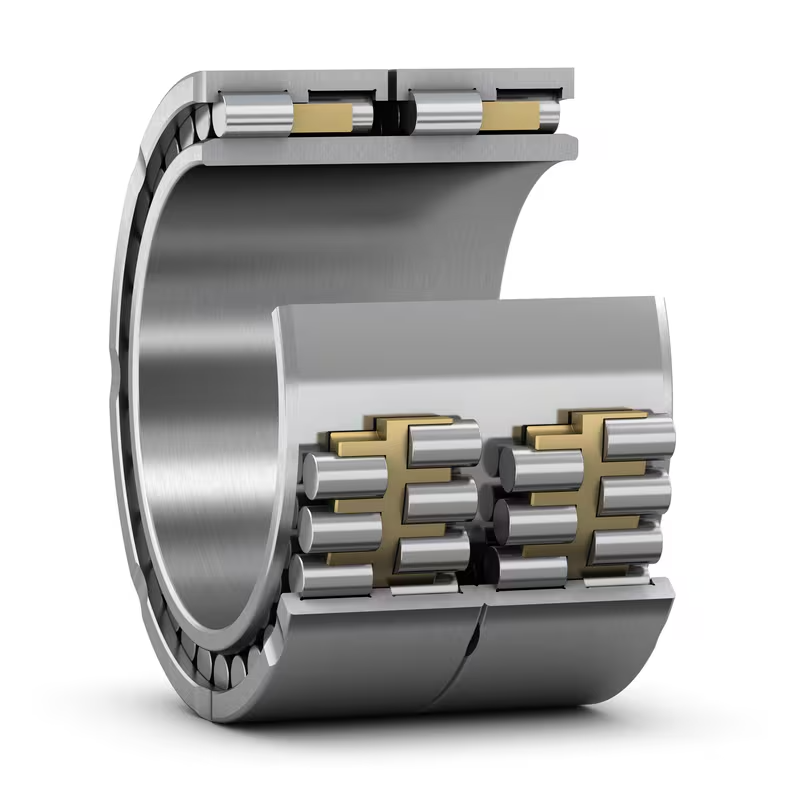

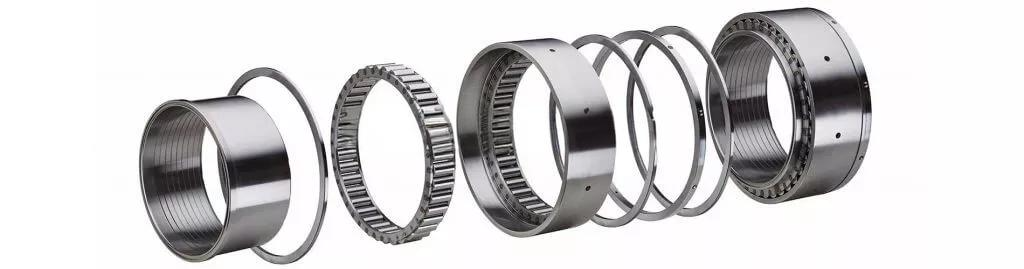

Multi-Row Cylindrical Roller Bearings: Typically four-row designs used in extremely heavy-duty applications like rolling mill stands in steel production, where immense radial loads are constant.
Full Complement Cylindrical Roller Bearings: These bearings omit the cage, packing in the maximum number of rollers. The result is the highest possible radial load rating for a given size, albeit at the expense of maximum allowable speed.
Key Design Features:
Cages: Made from pressed steel, machined brass, or polymer (like polyamide), the cage guides and spaces the rollers. Polymer cages offer reduced friction and are suitable for high-speed operations.
Flanges: The presence and arrangement of flanges (ribs) on the inner and outer rings determine the bearing’s ability to handle light axial loads and its suitability for floating or fixed positions.
3. Why Choose Cylindrical Roller Bearings? The Unbeatable Advantages
When your application demands performance under pressure, cylindrical roller bearings deliver tangible benefits:
- Exceptional Radial Load Capacity: Their primary superpower. They handle heavy radial forces far better than equivalently sized ball bearings.
- High-Speed Capability: Advanced cage designs and optimized roller profiles allow certain series to operate at very high rotational speeds.
- High Rigidity: Minimal elastic deformation under load ensures precision and accuracy, crucial for machine tools and gearboxes.
- Low Friction & Long Service Life: A well-lubricated, correctly specified cylindrical roller bearing experiences low friction. Features like the logarithmic roller profile reduce edge stress, combating premature fatigue and extending operational life.
- Separation Ease: Most designs feature separable components (inner ring with rollers/cage, and outer ring). This simplifies installation, dismounting, and maintenance inspections.
4. Industrial Applications: Where They Excel
You’ll find cylindrical roller bearings powering progress in critical sectors:
Gearboxes: In industrial gearboxes, wind turbine gearboxes, and vehicle transmissions, where they support high radial loads from gears.
Machine Tools: In lathe spindles, milling heads, and grinding machines, providing the rigidity and precision essential for high-tolerance machining.
Electric Motors & Generators: Supporting rotor shafts, especially in large motors and generators.
Material Handling & Mining: In conveyor systems, crushers, and excavators, enduring shock and vibration.
Pump & Compressor Systems.
5. The MYWAY Advantage: Beyond the Bearing
At MYWAY, we understand that a bearing is only as good as the system it operates in. Excessive wear, vibration, and premature failure often stem from the interface between the bearing and its housing. This is where our core expertise transforms your investment.
We specialize in manufacturing high-performance, custom-engineered bushings and sleeves. Think of them as the perfect, tailored interface for your cylindrical roller bearings.
How MYWAY Bushings Enhance Your Bearing Performance:
Perfect Fit & Alignment: Our precision-machined bronze bushings (including seawater-resistant alloys for marine applications) ensure an optimal press-fit into the housing, providing superior support and correcting minor misalignments that can kill a bearing.
Wear Resistance & Extended Life: By providing a durable, replaceable wearing surface, our bushings protect both the bearing’s outer ring and the housing bore. You replace a cost-effective bushing, not an entire housing or a prematurely failed bearing.
Vibration Dampening: The material properties of our bushings help absorb and dampen vibrations from heavy machinery, leading to smoother bearing operation and reduced noise.
Corrosion Protection: For harsh environments (marine, chemical, offshore), our specially formulated bronze alloys resist corrosion, safeguarding the bearing seat from degradation.
Simplified Maintenance: When wear does occur, replacing a MYWAY bushing is a straightforward, cost-effective maintenance task that restores the system to like-new condition.
Real-World Synergy: In a wind turbine gearbox, a double-row cylindrical roller bearing might support the main shaft. A MYWAY custom bushing ensures this bearing is perfectly seated in the massive gearbox housing, resisting fretting corrosion from operational vibrations and extending the service interval of the entire assembly. In port machinery like a ship-to-shore crane’s slew ring, our bushings work alongside large-diameter bearings to manage tremendous radial loads and environmental exposure.
6. Conclusion
Cylindrical roller bearings are the workhorses of industry, enabling machinery to handle immense forces with precision. Selecting the right bearing is the first step. The next, and often overlooked, step is ensuring it is installed and supported within a system designed for longevity.
This is the value MYWAY Bushings brings to your table. We don’t just supply a component; we provide a durability solution. By integrating our precision-engineered bushings and sleeves with your bearing choices, you build a foundation for unmatched reliability, reduced total cost of ownership, and maximized uptime.
Frequently Asked Questions (FAQ)
Q1: When should I choose a cylindrical roller bearing over a deep groove ball bearing?
A: Choose a cylindrical roller bearing when your application is dominated by very high radial loads and requires high rigidity. For combined loads (significant radial and axial) or applications where compactness and lower cost are priorities, a deep groove ball bearing might be more suitable.
Q2: What does “NJ” or “NU” mean in a bearing designation?
A: These are ISO standard codes indicating the ring rib configuration. An NU bearing has two ribs on the outer ring and none on the inner, allowing the inner ring and shaft to float axially. An NJ bearing has ribs on both rings and can handle light axial loads in one direction.
Q3: Can cylindrical roller bearings handle axial loads?
A: Generally, they are designed for radial loads. However, some types (like NJ design with a flanged inner ring) can sustain limited axial loads. For substantial axial thrust, a dedicated thrust bearing or a tapered roller bearing is recommended.
Q4: How does lubrication affect cylindrical roller bearing life?
A: Lubrication is critical. It reduces friction, prevents wear, dissipates heat, and protects against corrosion. The wrong lubricant or inadequate relubrication intervals is a leading cause of premature bearing failure. Always follow the manufacturer’s or a lubrication specialist’s guidelines.
Q5: Why should I consider custom bushings from MYWAY for a standard bearing application?
A: “Standard” applications often have unique challenges—vibration, housing wear, corrosion, or alignment issues. A custom MYWAY bushing acts as a performance-enhancing interface, solving these specific problems, protecting your bearing investment, and drastically extending the life of the entire assembly. It’s a cost-effective upgrade for reliability.
Q6: Can MYWAY provide solutions for heavy industry applications like steel mills or mining?
A: Absolutely. Our partnership with industry leaders like ZPMC (Zhenhua Heavy Industries) and our work in mining equipment attest to our capability. We engineer bushings from high-strength, wear-resistant bronze alloys specifically to withstand the extreme loads, contaminants, and punishing conditions of heavy industry.
