Understanding Sway Bar Bushings and Their Importance
Sway bars (also called stabilizer bars or anti-roll bars) play a crucial role in your vehicle’s handling characteristics. These components connect opposite sides of your suspension together and work by twisting when your vehicle corners, which helps reduce body roll and keeps your tires firmly planted on the road. According to automotive experts, when you make a hard left turn, your car’s body is thrown to the right as the left side tries to lift. This pushes up on the right lower control arm, which—because it’s connected to the sway bar through the end link—pushes up on the end of the bar. This twisting motion translates to the left side, pulling it down and maintaining traction through the corner.
The bushings are the rubber or polyurethane components that cushion the connection between the sway bar and your vehicle’s frame, as well as at the end links. They allow the bar to twist smoothly while preventing metal-to-metal contact. Over time, these bushings degrade, leading to handling issues and noise problems that affect your driving experience and safety.
Table of Contents
1. Recognizing Worn Sway Bar Bushings and Links
Identifying worn sway bar bushings early can prevent more serious handling issues. Common symptoms include:
Audible warning signs: A distinct clunking, creaking, or rattling noise when going over bumps, potholes, or during turning indicates worn bushings. Squeaking sounds often point to dry, deteriorated rubber bushings that need lubrication or replacement.
Handling issues: Excessive body roll during cornering, a vague or “loose” feeling in the steering, or reduced stability in crosswinds can all signal sway bar bushing problems.
Visual indicators: Upon inspection, cracked, dried-out, or visibly worn bushings with irregular shapes (no longer perfectly round) confirm replacement is needed.
Vehicle manufacturers typically use rubber bushings that begin degrading after approximately 5 years, though this varies based on driving conditions and climate. Performance-oriented polyurethane bushings typically last longer and provide better handling characteristics.
2. Tools and Parts Required for the Job
Before starting, gather these essential tools and materials:
Basic tools: Jack and jack stands, lug wrench, ratchet and socket set (including extensions), combination wrenches, torque wrench
Specialized tools: Pry bar, vice grips or locking pliers, penetrating fluid
Optional but helpful: Ball joint separator, cutting tool for stubborn fasteners, electric impact wrench
Replacement parts: Sway bar bushings (ensure correct size), end links if needed, appropriate lubricant
Critical safety note: Always use jack stands when working under a vehicle—never rely solely on a jack. Also, ensure the parking brake is engaged and wheels are chocked for maximum safety.
3. Step-by-Step Installation Guide
Preparation and Vehicle Setup
Measure your sway bar: Sway bars come in different diameters, so measure yours accurately before purchasing replacement bushings. Manufacturers sometimes install different sizes during the same model year.
Raise and secure the vehicle: Position your vehicle on a level surface. Using a floor jack, lift the front or rear (depending on which end you’re working on) and place jack stands at the proper jacking points. Securely block the wheels at the opposite end.
Remove wheels if necessary: While not always required, removing the wheels often provides significantly better access to the sway bar components.
Removing Old Bushings and Links

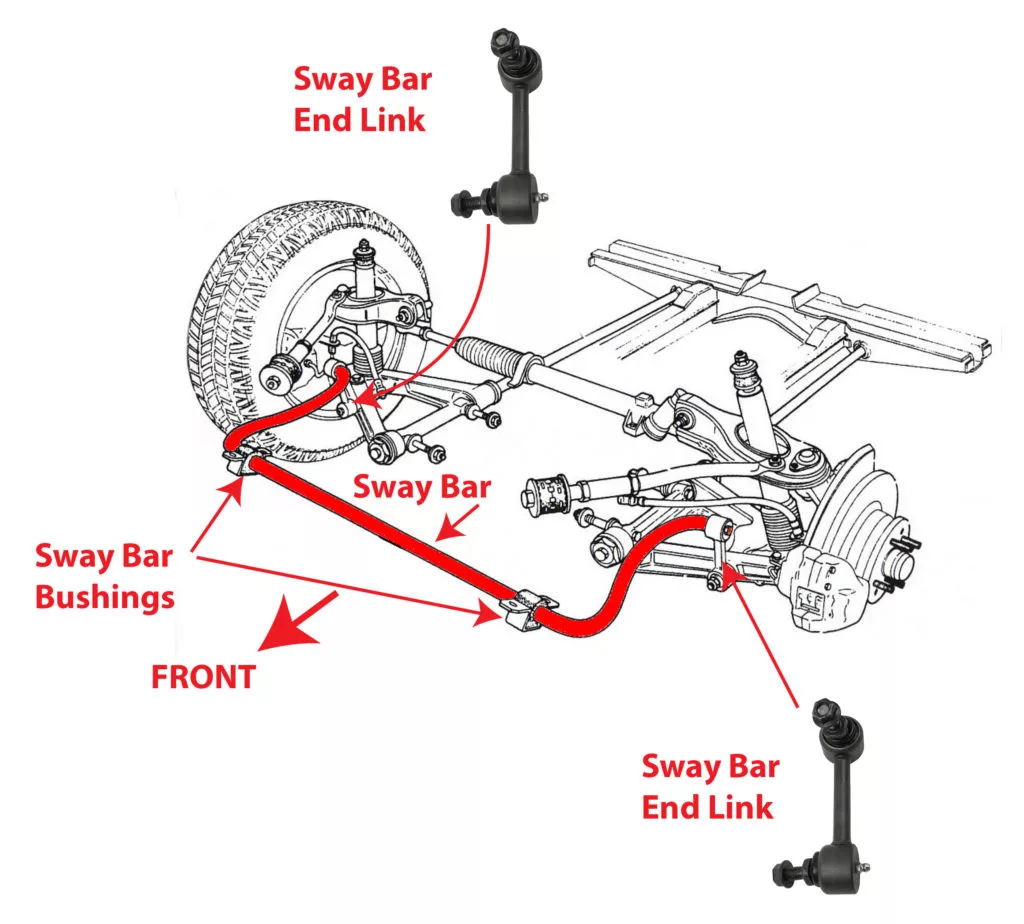

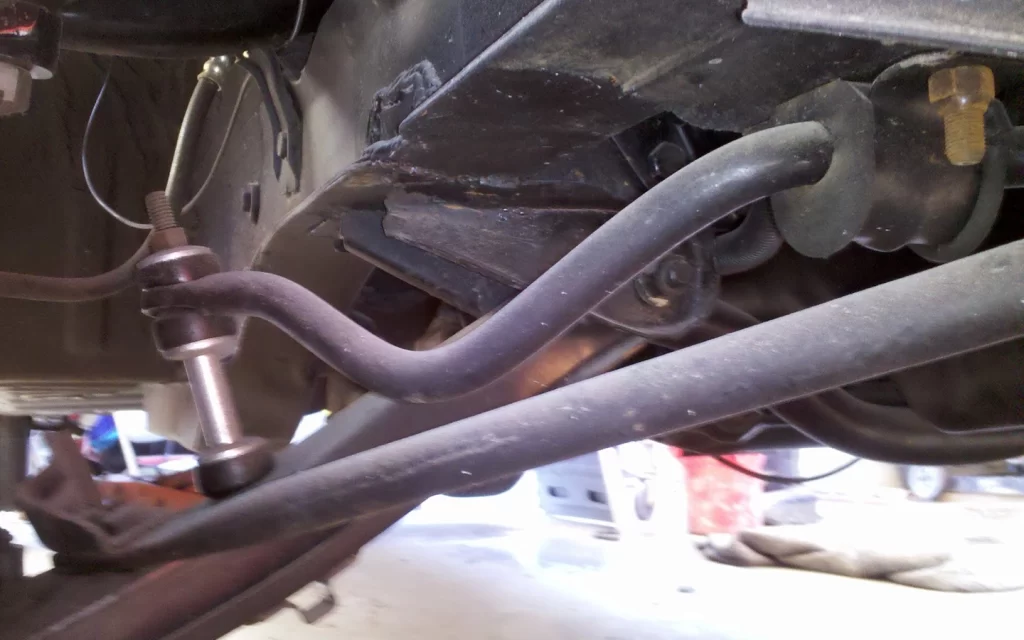

Locate components: Identify the sway bar, which runs across the vehicle between the two sides of the suspension. The frame bushings are located where the bar connects to the frame, while the end links connect the bar to the suspension components.

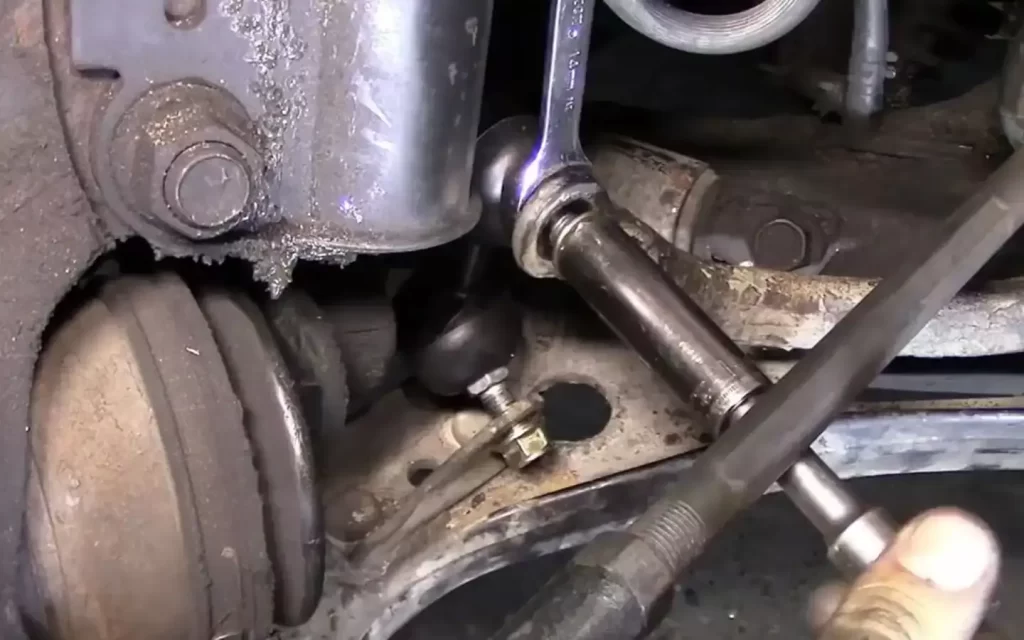

Disconnect end links: Begin by removing the nuts or bolts securing the sway bar links. On some front-wheel-drive vehicles, you may need a ¼-inch Allen wrench to keep the bolt from spinning while loosening the nut. If severely corroded, you may need to cut them using a cutting wheel.
Remove frame bushing brackets: The sway bar is attached by bushing brackets, typically one on each side. Undo the bolts securing these brackets to the frame. In some cases, you may need to carefully raise the engine slightly for additional clearance.
Remove old bushings: Once the brackets are removed, the old bushings can be slid off the sway bar. Most are split for easier removal.
Installing New Bushings
Clean contact surfaces: Thoroughly clean the sway bar where the new bushings will contact it using a wire brush or sandpaper. Remove all dirt, rust, and old lubricant to ensure proper function and longevity of the new bushings.

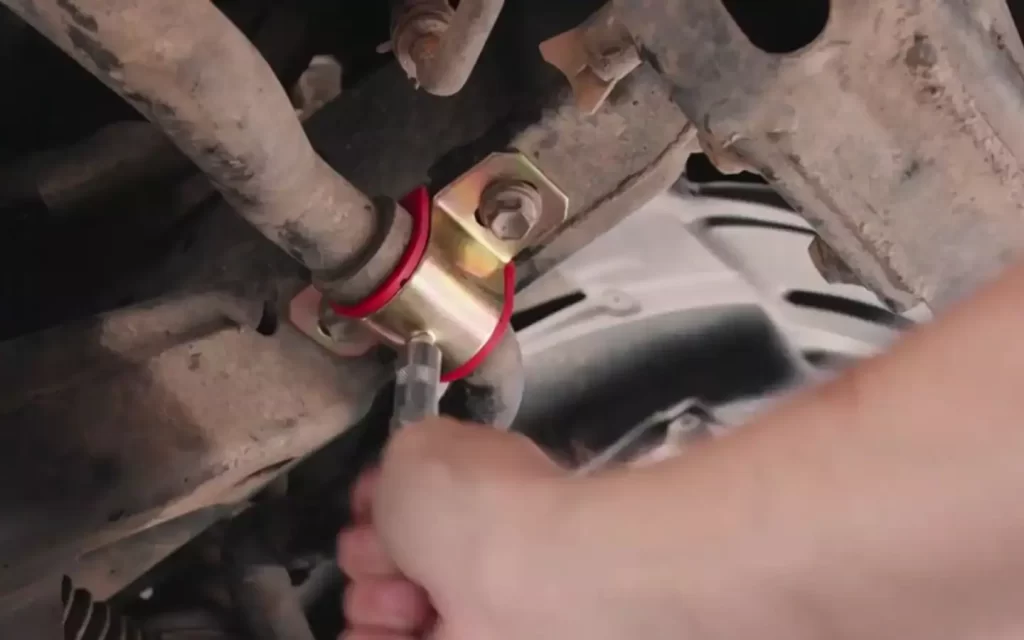

Lubricate properly: Apply an appropriate lubricant to the sway bar, new bushings, and mounting brackets. Important: Use only silicone-based lubricants with polyurethane bushings, as petroleum-based products can degrade rubber and some polyurethane compounds.
Position new bushings: Slide the new bushings onto the sway bar, ensuring they’re properly aligned with the mounting points on the frame. The split in the bushing should face the front of the vehicle.
Reinstall brackets: Position the mounting brackets over the bushings and secure them to the frame. Start all bolts before tightening any completely to allow for adjustment.
Reconnect end links: Install the end links with new bushings and hardware, connecting the sway bar to the suspension components.
Final Steps and Verification
Torque fasteners properly: Using a torque wrench, tighten all fasteners to manufacturer specifications. Suspension fasteners are critical parts that affect vital components—proper torque is essential for safety and performance. For example, stabilizer bar bracket bolts typically require 20-30 Nm (15-22 ft. lbs.), while end link nuts generally need about 20 Nm (15 ft. lbs.).
Lower the vehicle: Carefully lower the vehicle off the jack stands and remove all tools from the work area.
Test drive and verify: Take the vehicle for a test drive at low speeds, paying attention for any unusual noises. Check handling by taking a few moderate turns to verify the improvement in stability.
4. Professional Tips for Success
Work systematically: When dealing with multiple mounting points, work on one side at a time and consider turning the steering wheel to improve access to front components.
Address stubborn components: For severely corroded fasteners, apply penetrating fluid and allow it to soak for 10-15 minutes before attempting removal. In extreme cases, a cutting tool or heat may be necessary.
Consider upgrades: When replacing worn components, consider upgrading to performance polyurethane bushings which typically offer improved handling response and longer service life.
Check related components: While replacing sway bar bushings, inspect other suspension components such as control arm bushings, ball joints, and shock absorbers for wear, as these affect overall handling.
When it’s time to replace your sway bar bushings, MYWAY offers premium solutions designed to exceed OEM specifications. Our bushings feature:
Advanced material technology: Manufactured from highest-quality synthetic elastomers for optimal performance and longevity
Precision engineering: Knurled interior surfaces designed to retain grease and reduce maintenance requirements
Enhanced handling characteristics: Synchronize your suspension system for improved safety, handling performance, and ride quality
Durability: Outlast and outperform conventional rubber bushings in demanding conditions
Comprehensive applications: Available for a wide range of vehicle makes and models
MYWAY‘s performance bushings not only eliminate annoying noises and restore tight handling but also provide measurable improvements in cornering stability and steering response. Don’t compromise on your vehicle’s performance and safety.
Contact MYWAY today for expert guidance on selecting the right bushings for your vehicle and driving needs. Our technical specialists are ready to help you achieve the optimal balance of comfort and performance.
Frequently Asked Questions
How long do sway bar bushings typically last?
Original equipment rubber bushings generally last 5-8 years under normal driving conditions, but this varies based on climate, road conditions, and driving style. Performance polyurethane bushings often last significantly longer.
Can I replace just the bushings, or do I need to replace the entire sway bar?
In most cases, you can replace just the bushings. The sway bar itself rarely needs replacement unless it’s physically damaged or severely corroded.
Is it safe to drive with worn sway bar bushings?
While not immediately dangerous, worn bushings compromise handling stability and can lead to uneven tire wear. For optimal safety and performance, replace them promptly once wear is detected.
Do I need a wheel alignment after replacing sway bar bushings?
Typically, no. Sway bar bushings don’t directly affect wheel alignment angles. However, if you’re experiencing handling issues, it’s wise to have an alignment check, especially if other suspension components have been disturbed.
What’s the difference between rubber and polyurethane bushings?
Rubber bushings offer a softer ride but wear faster and allow more flex. Polyurethane bushings provide sharper handling response, reduced body roll, and longer service life, but may transmit slightly more road vibration.
Can I lubricate my existing bushings instead of replacing them?
Temporary noise reduction can sometimes be achieved by lubricating dry bushings with appropriate lubricants, but this is not a permanent solution. Worn or cracked bushings should be replaced for optimal safety and performance.
How do I know what size bushings to purchase?
Measure the diameter of your sway bar with calipers or a measuring tape. If unsure, consult your vehicle’s service manual, a dealership parts department, or MYWAY’s application guide for assistance.
