Bronze Continuous Casting: Unlocking Superior Strength for Precision Bushings
In the world of industrial manufacturing, the quality of your raw material dictates the reliability of your final product. For engineers and procurement specialists searching for high-performance bronze bearings, durable bushings, and wear-resistant alloy components, understanding the manufacturing process is just as important as the material itself.
While sand and centrifugal casting have their places, continuous casting of bronze has emerged as the gold standard for producing consistent, high-integrity stock that machines beautifully and lasts longer under pressure.
In this guide, we’ll dive deep into the continuous casting process, why it outperforms other methods, the specific alloys you should know, and how MYWAY leverages this technology to deliver custom-engineered bronze solutions that keep your equipment running.
Table of Contents
1. What is Continuous Casting? (And Why It Matters for Bronze)

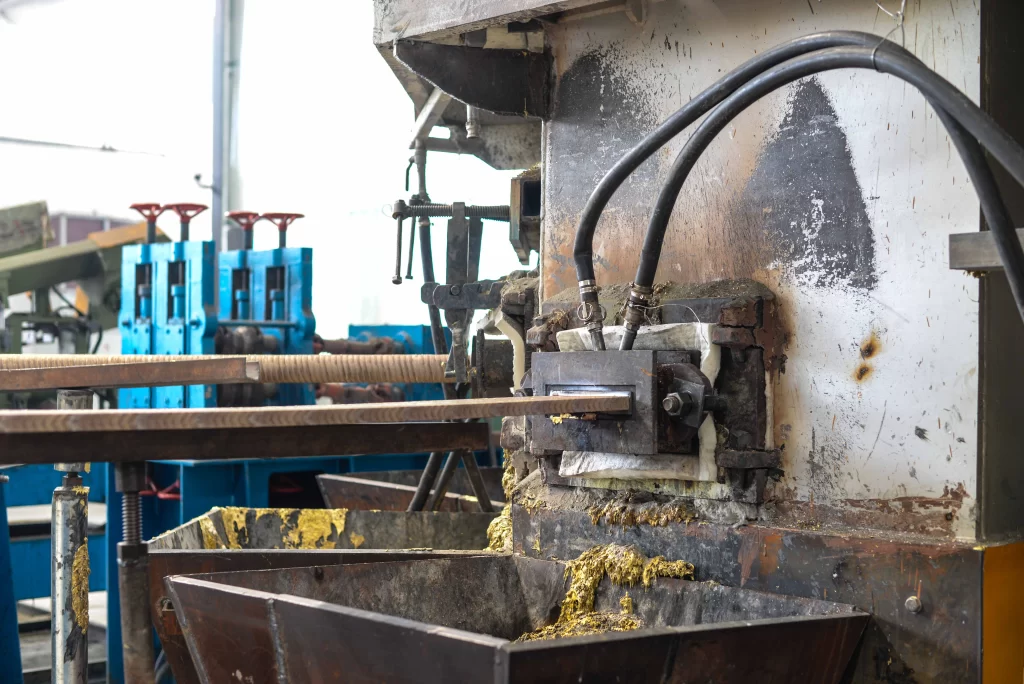

Continuous casting, sometimes referred to as “strand casting,” is a sophisticated manufacturing process where molten bronze is solidified into a long, continuous length—typically a bar, tube, or rectangular shape .

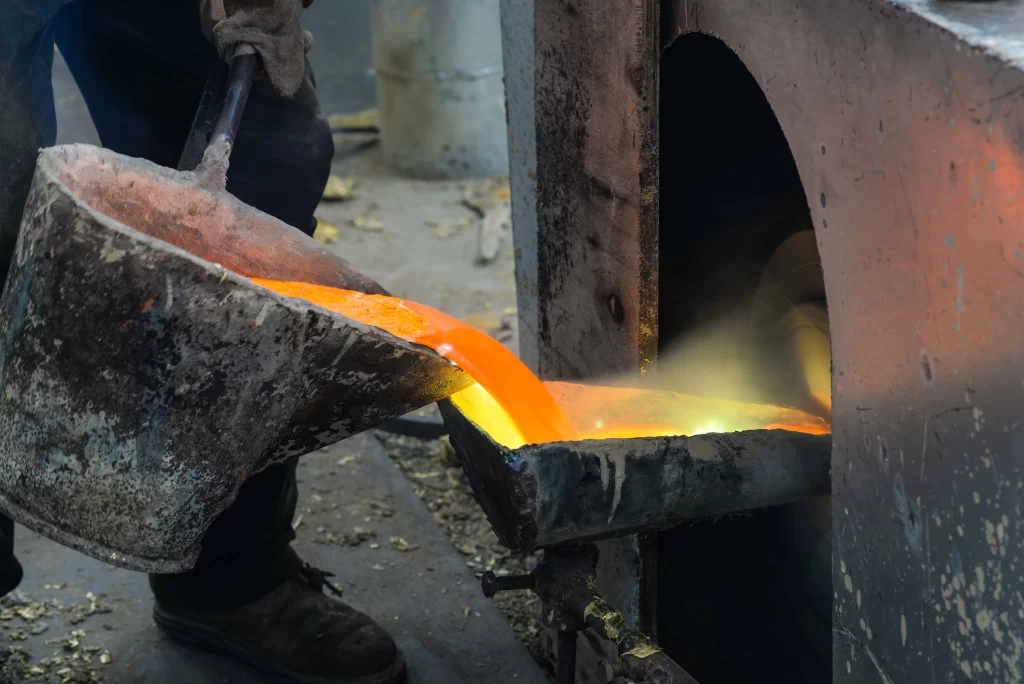

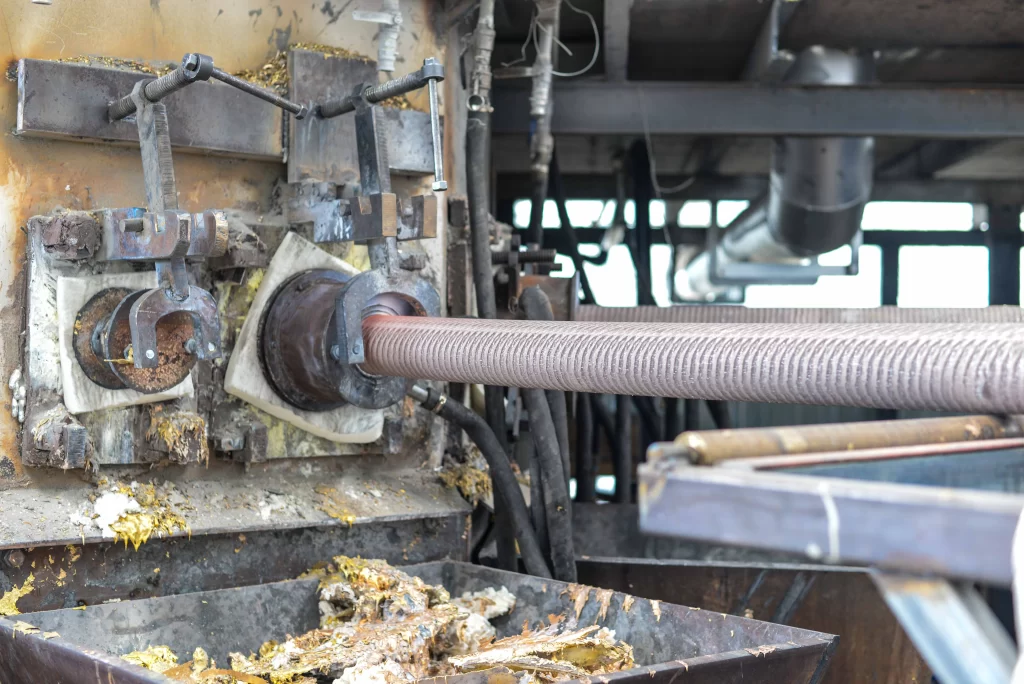

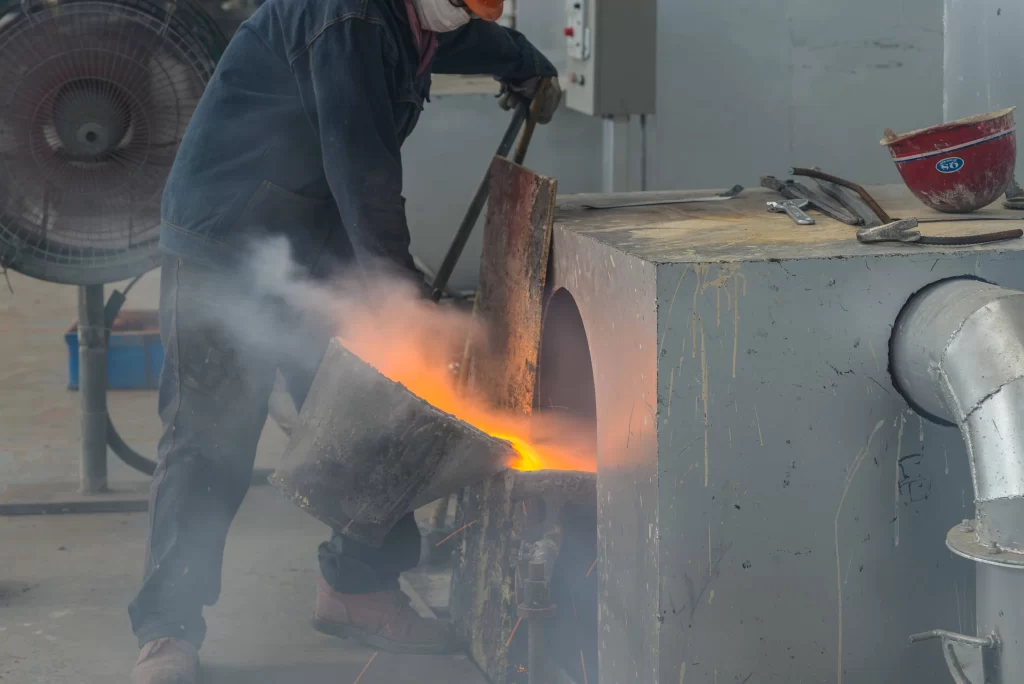

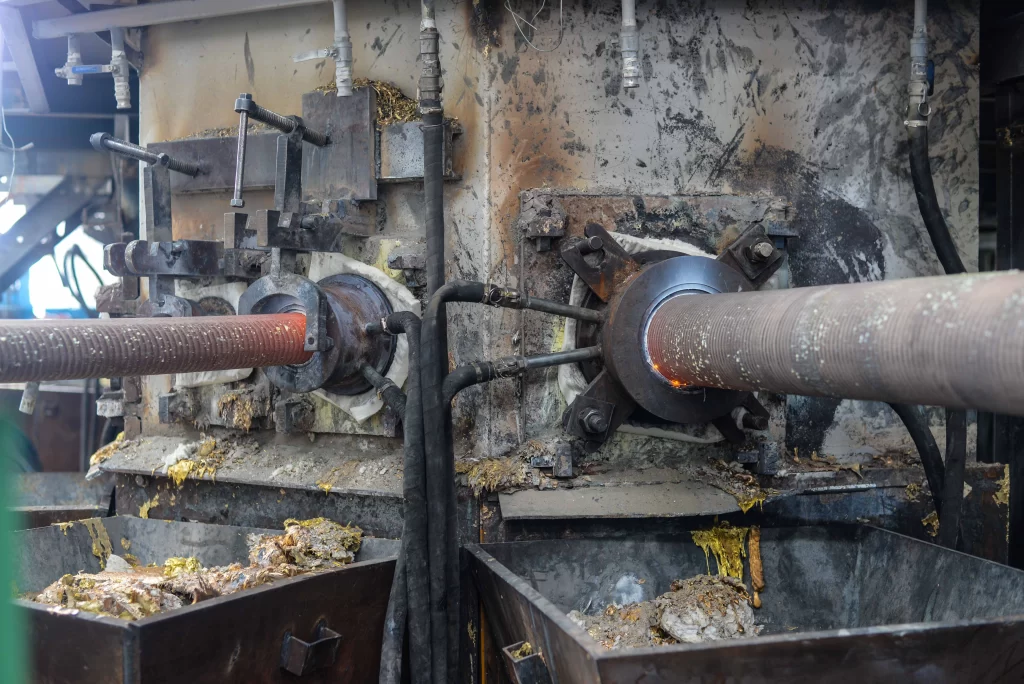

Unlike traditional methods that rely on discrete molds, this process operates like a well-oiled assembly line. Molten metal is poured from a furnace into a water-cooled graphite die. As the metal passes through the die, it rapidly solidifies and is mechanically withdrawn by pinch rolls, creating a consistent, uniform microstructure . This “endless” production method can then be cut to specific lengths for further processing .
The “Cooling Jacket” Effect
One of the secrets to the success of bronze continuous casting is the cooling jacket surrounding the graphite die. Water flows through it, rapidly chilling the molten bronze. This quick solidification is the key to the material’s superior properties, resulting in a finer grain structure and eliminating common casting defects .
2. Why Choose Continuous Cast Bronze? The 5 Key Advantages
When you specify continuously cast bronze for your bearings and bushings, you aren’t just buying metal; you are buying performance guarantees. Here is how it stacks up against sand or centrifugal casting :
1. Absolute Material Integrity (No Porosity)
One of the biggest headaches with sand casting is porosity—tiny voids caused by gas entrapment or shrinkage during solidification. In a bearing, porosity is a failure point. The continuous process, with its directional solidification, virtually eliminates pinholes and shrinkage cavities. This results in a pressure-tight structure capable of withstanding high hydraulic pressures without leaking .
2. Superior Machinability
Machinists love continuous cast bronze. Because the process eliminates hard spots and creates a uniform structure, it extends tool life and allows for higher cutting speeds. You get a smoother surface finish with less effort, which is critical when producing precision flange bearings or complex slide plates .
3. Uniform Grain Structure
Rapid cooling refines the grain size. A finer, uniform grain structure translates directly to improved mechanical properties: higher tensile strength, better yield strength, and enhanced wear resistance. Your components simply last longer .
4. Cost-Effectiveness (Less Scrap)
Because continuous casting produces stock that is near-net shape (especially with tubes), you buy less material and machine away less scrap. Compared to centrifugal casting, where the inner diameter is rough and requires significant machining to remove impurities, continuous cast bars come with minimal stock allowance, often within +/- .015 inches .
5. Flexibility in Length

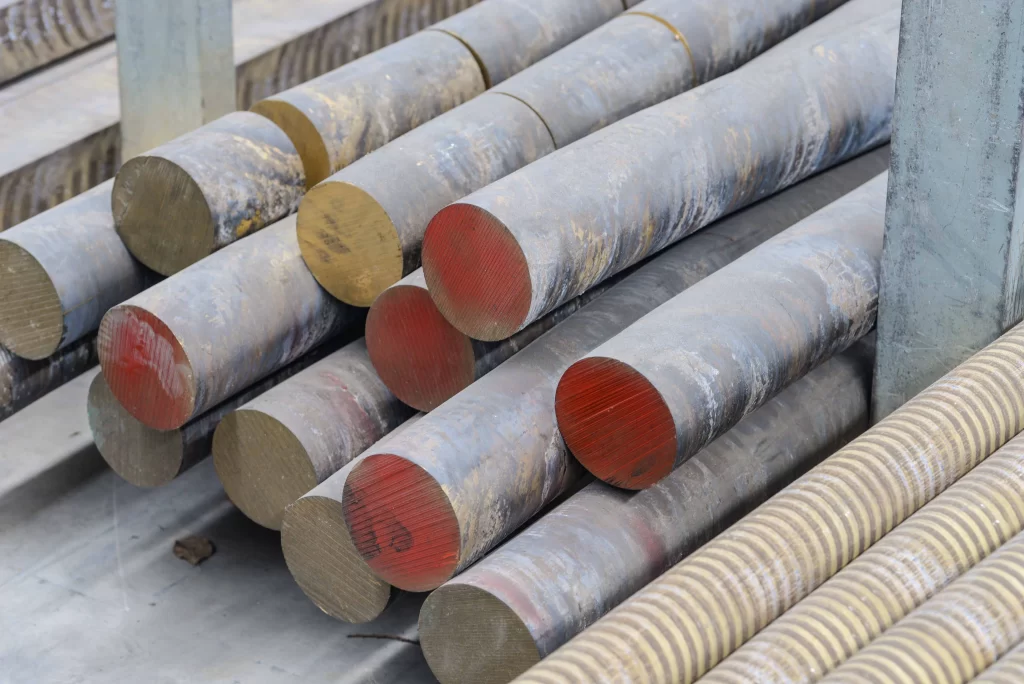

While centrifugal casting is limited by the size of the mold, continuous casting can produce bars up to 3,000mm (or longer) with consistent quality . This is ideal for manufacturing multiple parts from a single bar, reducing waste.
| Casting Method | Typical Porosity | Grain Structure | Machinability | Shape Complexity |
|---|---|---|---|---|
| Continuous Casting | None / Dense | Very Fine / Uniform | Excellent | Simple Profiles |
| Centrifugal Casting | Low (Impurities at ID) | Dense | Good | Cylinders Only |
| Sand Casting | Higher Risk | Coarse / Varies | Lower | Complex Shapes |
Comparison of common bronze casting methods .
3. Common Bronze Alloys in Continuous Casting
Not all bronze is created equal. Depending on your application—whether it be ocean energy, mining, or heavy machinery—you will need a specific alloy composition. At MYWAY, we work extensively with the following industry-standard grades:
C93200 (SAE 660): Often called the “standard” bearing bronze. It is a leaded tin bronze known for its excellent anti-frictional properties, good machinability, and moderate load-carrying ability. It is the go-to for general machinery bearings and bushings .
C95400 (Aluminum Bronze): This alloy offers exceptional tensile strength and high wear resistance. It is ideal for heavy-duty applications like worm gears, construction equipment, and parts subjected to high impact and fatigue .
C90300 (High Tin Bronze): Known for its hardness and corrosion resistance, particularly in marine environments. It is frequently used for pumps, valves, and gears that require soldering and brazing .
C86300 (Manganese Bronze): Often described as one of the toughest non-ferrous alloys, it is perfect for high-load, low-speed applications such as hydraulic cylinder parts and bridge bearing pads .
C89835 (Lead-Free): With increasing environmental regulations (like the Reduction of Lead in Drinking Water Act), C89835 has become the standard lead-free alternative to C93200, offering similar properties without the environmental hazards .
4. Continuous vs. Centrifugal: Making the Right Call
You might be wondering, “When should I specify continuous cast over centrifugal cast?”
Choose Centrifugal Casting if you need very large diameter rings or cylinders (over 2000mm OD) where impurities can be machined away from the ID .
Choose Continuous Casting if you need precision, consistency, and machinability for bearings with inner diameters typically less than 180mm . For production runs requiring long lengths or near-net shapes (like tubes and hex bars), continuous casting is the most efficient and reliable method .
5. Applications Across Extreme Industries
The durability of continuous cast bronze makes it indispensable across various sectors:
Material Handling: Bronze bushings withstand constant vibration and heavy loads in conveyor systems, ensuring uptime and reducing maintenance costs.
Marine & Ocean Energy: The corrosion resistance of aluminum bronze is critical in seawater environments. Self-lubricating variants ensure reliability in tidal turbines and ship components .
Mining & Mineral Processing: In remote, harsh environments where heat and contaminants are the norm, MYWAY’s continuous cast bearings provide the reliability needed to enhance safety and reduce operational costs.
Construction & Automotive: From hydraulic excavators to heavy-duty trucks, the wear resistance of alloys like C95400 ensures that pins and bushings survive millions of cycles.
6. Continuous Casting at MYWAY: Precision Engineered for Your World
At MYWAY, we don’t just supply bronze; we engineer solutions. We utilize advanced continuous casting technology to produce a wide array of precision bearings and bushings that meet the rigorous demands of modern industry.
Why Partner with MYWAY?
Material Versatility: We offer a full range of alloys, from standard C93200 to high-strength C95500 and lead-free alternatives. We help you select the right chemistry for your specific load, speed, and environment .
Customization: Have a unique print? We specialize in custom dimensions, flange bearings, thrust washers, and complex slide plates. Whether you need a solid bar or a near-net shape to minimize machining, we can deliver .
Rapid Turnaround: Because we control the casting process, we can respond quickly to large orders without the delays associated with traditional mold-making. Our stock programs ensure that standard sizes are ready for immediate shipment.
End-to-End Service: From the initial melt to the final machined part, MYWAY ensures quality at every step. Our components are designed to lower your total cost of ownership by extending service life and reducing unplanned downtime.
Frequently Asked Questions (FAQ)
Q: What is the main benefit of continuous cast bronze for bearings?
A: The main benefit is uniformity. The process creates a dense, porosity-free structure with a fine grain. This means the bearing will have consistent wear characteristics and won’t fail due to hidden internal voids .
Q: Is continuous cast bronze suitable for high-load applications?
A: Absolutely. While alloy choice matters, continuous casting enhances the base material’s properties. For high-load applications, alloys like C95400 (Aluminum Bronze) cast with this method provide exceptional compressive strength and toughness .
Q: How does continuous casting reduce machining costs?
A: It reduces machining costs in two ways. First, the material is free of hard spots, so it cuts easily and prolongs tool life. Second, it can be cast into near-net shapes (like tubes or custom profiles), meaning you remove less material from the stock to get to your final dimensions .
Q: Can you provide lead-free bronze bushings?
A: Yes. MYWAY offers lead-free alloys such as C89835, which are perfect for applications involving potable water or where environmental compliance is mandatory. These alloys maintain excellent mechanical properties while meeting strict regulatory standards .
Q: What industries benefit most from continuous cast bronze?
A: Industries that demand reliability under stress. This includes mining, mineral processing, material handling, marine engineering, oil and gas, and heavy industrial machinery .
Get Started with MYWAY Today
Don’t let premature wear or casting defects compromise your machinery. Whether you need a standard plain bearing or a custom-engineered flange bushing, MYWAY has the technical expertise and manufacturing capability to deliver.
Ready to optimize your application with high-integrity continuous cast bronze?
Contact MYWAY Today for a consultation or to request a quote. Upload your drawing, and let our engineers help you select the perfect alloy for your next project.
