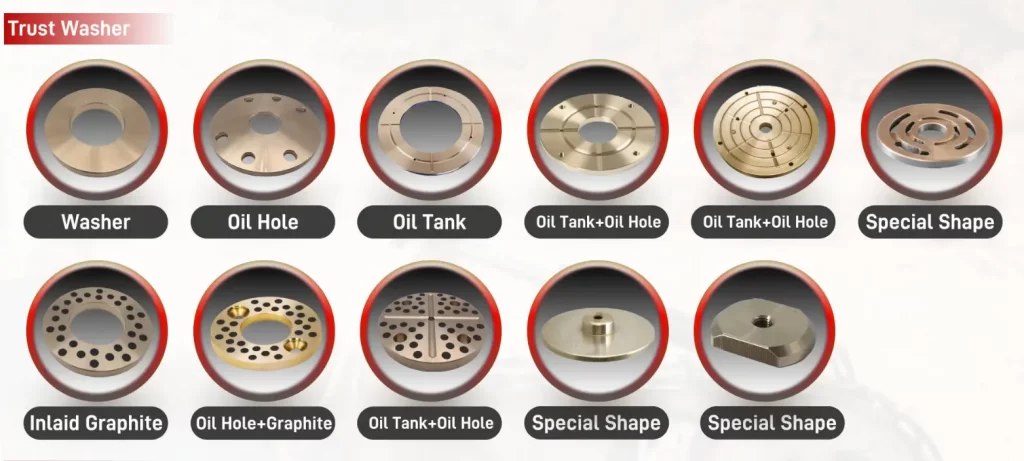

MYWAY Bronze Washer: A Heavy-Duty Flat Washer Solution for Industrial Applications
Introduction
Although washers are small components, they play a critical role in mechanical assemblies. In applications involving high axial loads, continuous vibration, or harsh environments such as marine engineering and heavy construction, the selection of washer material and dimensions directly affects equipment reliability and maintenance costs. Many equipment failure analyses show that a failed thrust washer or flat washer often leads to serious damage in the transmission system or bolted joint.
MYWAY Bushings is a manufacturer specializing in high-performance bronze bushings, flat washers, and thrust washers. With over 20 years of experience, the company serves customers in more than 40 countries and holds IATF/ISO quality certifications. Its bronze washers offer good wear resistance, corrosion resistance, and self-lubricating properties, outperforming standard carbon steel or stainless steel washers under demanding conditions.
Table of Contents
1. What Is a Bronze Washer?
A bronze washer is a flat annular component made primarily from copper-tin or copper-silicon alloys. It is installed between a bolt, nut, and workpiece. Its main functions include:
Load distribution: Evenly spreading clamping force across the contact surface to prevent local crushing or deformation.
Vibration and shock absorption: Reducing bolt loosening caused by mechanical motion or temperature changes.
Corrosion prevention and galvanic isolation: Separating dissimilar metals to inhibit electrochemical corrosion.
Electrical conductivity or grounding: Providing a stable grounding path in electrical equipment.
Auxiliary sealing: Working with dedicated seals in fluid or pressure systems.
Compared with ordinary steel washers, bronze washers are non-magnetic, non-sparking, and inherently corrosion-resistant, making them suitable for environments where ferrous metals cannot perform reliably over long periods.
When axial loads parallel to a rotating shaft are present – for example, in gearboxes, pumps, and automotive transmissions – a thrust washer is required. MYWAY has extensive design and manufacturing experience in this product category, offering low-friction, wear-resistant bronze thrust washers that prevent direct metal-to-metal contact while maintaining precise alignment.
2. Two Main Bronze Washer Materials: Silicon Bronze vs. Phosphor Bronze
Different industrial applications impose different performance requirements on washer materials. The two most widely used bronze alloys are silicon bronze and phosphor bronze.
2.1 Silicon Bronze Washers (C65100, C65500)
Typical composition: 94–96% copper, 2.5–4% silicon, with trace amounts of manganese or iron.
Key characteristics:
Excellent corrosion resistance in saltwater, suitable for marine and coastal environments.
Relatively high electrical conductivity for grounding or electrical connections.
Good strength and ductility, allowing stamping into flat or shaped washers.
Typical applications: Marine hardware, coastal construction, electrical conduits, outdoor structural connections.
2.2 Phosphor Bronze Washers (PB102, PB103, C51000, C52100)
Typical composition: 89–95% copper, 5–11% tin, 0.01–0.35% phosphorus.
Key characteristics:
Excellent fatigue resistance for high-cycle applications.
High wear resistance and strength at elevated temperatures.
Non-magnetic, suitable for applications sensitive to magnetism (e.g., medical electronics, aviation instruments).
Typical applications: Gearboxes, industrial pumps, automotive automatic transmissions, marine propulsion systems, and certain medical devices (such as joint implants) requiring wear-resistant components.
MYWAY can supply both alloys based on customer operating conditions and can also tailor material compositions for special requirements.
3. Difference Between Friction Washers and Standard Flat Washers
Standard flat washers primarily distribute load and protect contact surfaces. Friction washers – which include many types of bronze thrust washers – are designed specifically for controlled friction characteristics. Some aim to reduce friction for smooth sliding, while others increase friction to prevent loosening under vibration.
A comparison of common friction washer types:
| Type | Function | Typical Applications |
|---|---|---|
| Thrust washer | Handles axial loads (parallel to shaft) | Gearboxes, pumps, automotive transmissions |
| Self-lubricating washer | Contains embedded lubricants (oil-impregnated bronze or PTFE) for maintenance‑free operation | Harsh environments, high-speed operation, locations difficult to lubricate |
| PTFE slide‑layer washer | Coefficient of friction as low as 0.02–0.25 | Food processing, chemical equipment, medical devices |
MYWAY offers all the above types of friction washers, including custom flat washers, thrust washers, and self-lubricating bronze bushings, with the goal of extending maintenance intervals while ensuring operational reliability.
4. Importance of Material Selection
The actual performance of a bronze washer depends heavily on its alloy composition and manufacturing process. MYWAY commonly uses the following material configurations:
Stainless steel + bronze composite structure: Stainless steel backing provides high structural strength and corrosion resistance, suitable for marine, chemical, or food industry applications.
Sintered bronze layer: Acts as a porous carrier for retaining oil or solid lubricants, enhancing heat dissipation and wear resistance.
PTFE/fiber surface layer: Provides a self-lubricating surface with a very low coefficient of friction (0.02–0.25) while protecting the mating surface.
Graphite composite: For extreme high loads (static load up to 250 N/mm²) and a wide temperature range (–200°C to +280°C).
In terms of manufacturing, MYWAY starts with smelting high-purity copper alloys, followed by precision centrifugal casting to ensure uniform material density. Subsequent CNC machining achieves micron-level dimensional accuracy, and finished products are 100% inspected using CMM and optical inspection equipment.
5. Custom Bronze Washers for Non‑Standard Sizes
Standard-size washers cannot cover all engineering requirements. For special inner diameters, outer diameters, thicknesses, or shapes, a custom solution is necessary.
MYWAY supports the following custom types:
Sleeve bushings
Flanged bushings
Thrust washers
Split bushings
Non-standard shaped parts
Customizable parameters include:
Inner diameter / outer diameter
Thickness
Special features (oil grooves, lubrication holes, chamfers, etc.)
Material combinations (silicon bronze, phosphor bronze, graphite‑embedded bronze, PTFE‑lined, etc.)
For customers who need quick access to standard-size metal or non-metal flat washers, Boker’s is a potential supplementary resource. Boker’s maintains over 32,000 stock tools for flat washers, spacers, and shims. Outside diameters range from 0.080″ to 5.140″ (some non‑standard sizes up to 12.00″). Thickness ranges are 0.005–0.190″ for metals and 0.005–0.125″ for non‑metallics. No tooling charge applies for their stock tool sizes, and shrinkage factor references are provided for non‑metallic materials. However, it should be noted that Boker’s does not carry finished washers in inventory; instead, they manufacture to order using their tooling.
For bronze washers, thrust washers, and bushings, MYWAY is a more specialized vertically integrated manufacturer, controlling the entire process from casting to finished products, thereby ensuring quality and delivery reliability.
6. Typical Application Industries
Construction machinery: Supplying bronze washers and bushings for engineering cylinders, chassis components, boom pivot points, and high-load lifting points for customers including Sany Group, XCMG, Sunward, XGMA, and Hengli Group.
Automotive industry: Manufacturing self‑lubricating bronze or high‑performance polymer bushings for brake caliper pins, shock absorbers, and other components, reducing sticking and abnormal noise.
Marine and offshore engineering: Silicon bronze washers are widely used due to their excellent seawater corrosion resistance, and they offer better strength and temperature resistance than brass.
Aerospace: Phosphor bronze washers meet or exceed standards such as ANSI, FAA, DOD, SAE, RoHS, NADCAP, and Mil‑Spec.
Heavy equipment: Providing large bronze bushings up to 20 inches in diameter for mining machinery, hydroelectric power stations, crushers, and offshore platforms.
Food processing and medical: PTFE‑lined washers offer low friction and chemical resistance, suitable for high‑cleanliness applications.
7. Overview of Boker’s Flat Washer Tooling
When procuring metal or non‑metal flat washers with dimensions close to standard sizes and flexible quantities, Boker’s can serve as a supplemental resource. Its main features include:
Outside diameter range: 0.080″ to 5.140″ (some non‑standard sizes up to 12.00″)
Thickness range: 0.005–0.190″ for metals, 0.005–0.125″ for non‑metallics
Material options: Over 2,000 commonly specified materials, including metals and numerous non‑metallics (ABS, acetal, PVC, nylon, MD nylon, polycarbonate, fibre, polyolefins, polyimide films, NEMA grade laminates, etc.)
Tooling charge: No charge for dimensions within their 32,000+ stock tools
Online search tool: Customers can input target OD, ID, thickness, and tolerances to identify available stock tools
Custom stamping dies: If a dimension is not covered by stock tools and tolerances cannot be adjusted to match an existing tool, Boker’s can manufacture a custom die
For non‑metallic materials, special attention should be paid to their shrinkage factor reference, as materials such as nylon and acetal may change dimensions after stamping due to moisture absorption and temperature variation.
For bronze thrust washers, bushings, and high‑load bronze washers, MYWAY is the recommended contact due to its focused expertise and vertical integration in bronze material manufacturing.
8. Key Dimensions and Tolerances
When specifying a custom flat washer, spacer, or shim, three basic dimensions must be defined:
Outside diameter (OD)
Inside diameter (ID)
Thickness (T)
Precision washers and thrust washers typically require tight tolerances. Typical precision length tolerances can reach ±0.01 mm, while the thickness tolerance for ordinary spacers is around ±0.2 mm.
MYWAY uses precision CNC machining to achieve micron‑level dimensional accuracy and verifies every product with CMM and optical inspection equipment. Boker’s offers a tolerance‑based search function that allows customers to specify permissible deviation ranges when checking for available stock tools.
9. Advantages of Self‑Lubricating Bronze Washers
Difficulty of lubricant replenishment is a common issue in equipment maintenance. Examples include gearboxes installed in confined or harsh environments, industrial pumps running continuously, and heavy machinery operating in dusty or wet conditions.
Self‑lubricating bronze washers contain embedded solid lubricants (such as graphite plugs or PTFE) that provide continuous lubrication without external scheduled oiling.
Main advantages:
Reduced maintenance frequency and lower labor costs
Stable lubrication performance throughout the product lifetime
Suitable for moist, corrosive, or extreme temperature environments
High load‑carrying capacity: PV value typically 1.5 N/mm²·m/s under dry friction, reaching 3.25 N/mm²·m/s with oil lubrication
MYWAY produces graphite‑embedded self‑lubricating bronze thrust washers that offer good wear resistance and self‑lubricating properties. They are widely used in high‑load industrial applications such as automotive assembly lines, water turbines, gate dams, and plastic injection machinery.
10. Core Capabilities of MYWAY Bushings
Industry experience: Over 20 years focused on bushing and washer manufacturing, with a complete process chain from casting to finished product.
Vertical integration: In‑house control of smelting, centrifugal casting, CNC machining, assembly, and inspection.
Quality system: IATF/ISO certified, serving customers in more than 40 countries.
Representative customers: Sany Group, XCMG, Sunward, XGMA, Hengli Group, and other leading construction machinery companies.
Custom capabilities: Sleeve bushings, flanged bushings, thrust washers, split bushings, and non‑standard shaped parts.
Precision level: Micron‑level CNC machining plus CMM/optical inspection to ensure product consistency.
For bronze washers and bushings that need to withstand high loads, corrosive environments, or long‑term maintenance‑free operation, MYWAY is one of the professional manufacturers in this field.
Frequently Asked Questions (FAQ)
Q: What are the main differences between a bronze washer and a steel washer?
A: Bronze washers are non‑magnetic, non‑sparking, and inherently corrosion‑resistant, making them suitable for marine, chemical, high‑temperature, or magnetism‑sensitive environments. In addition, bronze can be made self‑lubricating by adding graphite or PTFE, and it offers better wear resistance than ordinary carbon steel.
Q: Can MYWAY produce non‑standard size bronze washers?
A: Yes. MYWAY supports custom dimensions, materials, and shapes based on customer drawings, including sleeve bushings, flanged bushings, thrust washers, split bushings, and non‑standard parts.
Q: What is a thrust washer and when is it needed?
A: A thrust washer is a flat component designed to support axial loads (parallel to the axis of a rotating shaft). It is required in applications where a rotating shaft is subject to lateral forces – for example, gearboxes, pumps, automotive transmissions, and marine propulsion systems.
Q: How to choose between silicon bronze and phosphor bronze?
A: For marine or salt‑spray environments, corrosion resistance is the priority – choose silicon bronze. For high‑cycle, high‑wear conditions such as gearboxes and transmissions, fatigue resistance and wear resistance are more important – choose phosphor bronze.
Q: Does MYWAY offer self‑lubricating bronze washers?
A: Yes. MYWAY produces graphite‑embedded self‑lubricating bronze thrust washers that can operate maintenance‑free, making them suitable for high‑load and intermittent motion applications.
Q: What is the typical lead time for custom bronze washers?
A: Lead time depends on drawing complexity and order quantity. It is recommended to contact MYWAY directly with detailed specifications and quantities to obtain an accurate lead time.
Q: What tolerance levels can be achieved for bronze washers?
A: MYWAY achieves micron‑level tolerances through precision CNC machining, and every product is inspected using CMM and optical equipment.
Q: Which industries does MYWAY mainly serve?
A: Construction machinery, automotive, marine, aerospace, heavy equipment, food processing, medical, agriculture, and hydraulic systems.
Q: How can I request a quotation for MYWAY bronze washers?
A: Visit the official website mybushing.com and use the fast quote form, or contact MYWAY directly with the required OD, ID, thickness, material, and quantity. If available, please attach drawings.
Conclusion
Although small in size, washers have a significant impact on the long‑term reliable operation of equipment. Choosing the appropriate material, dimensions, and manufacturing process can substantially reduce unplanned downtime and maintenance costs.
MYWAY bronze washers and thrust washers are designed specifically for high‑load, corrosive, and demanding operating conditions. The product range includes silicon bronze, phosphor bronze, and graphite‑embedded self‑lubricating materials. With complete in‑house manufacturing capabilities from casting to finished products, backed by IATF/ISO quality certifications, MYWAY can meet customer requirements for custom dimensions, precision, and batch quantities.
For further product information, technical data, or custom quotation requests, please visit mybushing.com and use the fast quote form or contact the MYWAY sales team directly.
For standard‑size flat washers, spacers, and non‑metallic washers, Boker’s – with over 32,000 stock tools and no tooling charge for stock sizes – is a useful supplementary resource. However, for high‑performance bronze washers, bushings, and thrust washers, MYWAY is the more specialized choice.
Contact MYWAY Bushings for bronze washer solutions tailored to your equipment needs.
